How to Fix Delaminating Climbing Shoes for Good

I’ve seen $200 La Sportiva Solutions turned into climbing casualties by a $5 tube of Super Glue. The physics are unambiguous — and so is the fix.

You pull your shoes out of the bag at the crag and notice the toe rand of your La Sportiva Solutions separating from the upper like a zipper slowly giving up. The rubber isn’t missing. It’s just… leaving. If you’ve climbed in the Southwest during summer, you already know the hot car variation: you return to your truck after a two-hour approach to find the rand has migrated 5–10mm in a single afternoon. That’s not a manufacturing defect. That’s physics catching up with you.

I’ve been resoling and repairing shoes for years. Here’s exactly what causes climbing shoe delamination, how to read what the separation is telling you, and how to execute a proper repair — one that survives a redpoint attempt, not just a weekend of gym laps.

⚡ Quick Answer: Climbing shoe delamination is caused by heat exposure, oxidation, or mechanical wear — not random failure. To fix it at home: sand both surfaces to black rubber with 80–120 grit sandpaper, clean with pure acetone, apply a thin coat of Renia Syntic Total or Barge cement to both surfaces, wait 15–20 minutes until tacky (the fingerprint test), then press firmly with a rubber mallet and clamp for 60 minutes. Full curing time is 24–48 hours before climbing. Do not use Super Glue or Gorilla Glue.

Why Your Shoe Is Actually Peeling — The Physics of Bond Failure

Climbing shoes are cold-bonded, not vulcanized. That’s intentional — it’s what makes resoling possible. But it creates a weakness that vulcanized construction avoids: heat transforms that contact cement from solid to soft, fast.

Most technical adhesives used in shoe production are heat-activated contact cements with a softening point that’s easy to exceed inside a parked car on a summer day. The cement doesn’t burn — it just reverts to tacky. And the tensioned rand, which was engineered to pull, takes that opportunity to migrate. Climbers in Arizona and Utah have documented catastrophic bond migration where the rand shifts 5–10mm in a single afternoon in a trunk.

But heat isn’t the only mechanism. Look at where the delamination starts — it tells you the cause. Toe tip separation points to toe-drag and poor footwork on abrasive gym surfaces. Side rand failure usually means lateral stress combined with heat. Heel cup pulling away signals slingshot rand tension release. Arch seam failure means you’ve overloaded the P3 platform — La Sportiva‘s mechanical tensioning system that maintains the shoe’s aggressive geometry through a continuous rand.

Here’s the part almost nobody mentions: during a dynamic move, the friction energy generated as your rubber deforms against the rock converts to heat inside the rubber itself. That’s hysteresis — the energy dissipated as your rubber compresses into rock irregularities. Research on how hysteresis generates localized heat inside rubber during dynamic loading confirms that this internal heat can thermally stress the adhesive bond from the inside out. And the rubber compound’s Shore A hardness directly affects how much heat it generates under load — softer rubbers like Vibram XS Grip produce more internal heat than stiffer edge-focused compounds.

One more thing that doesn’t get enough attention: the oxidized layer. UV and air exposure create a whitish film on rubber surfaces. That film completely blocks new adhesive from bonding to fresh rubber. Sanding isn’t cosmetic — it’s a chemical prerequisite.

Pro tip: After any high-heat day at the crag, take your shoes out of the bag immediately and let them air out in a shaded, cool spot. Don’t leave them in the car — not even vented.

The Diagnostic: Should You Fix It or Send It to a Pro?

Here’s where most articles fail you: they jump straight to “apply glue” with zero diagnostic framework. The severity of your delamination determines the entire repair path, and getting it wrong costs you money.

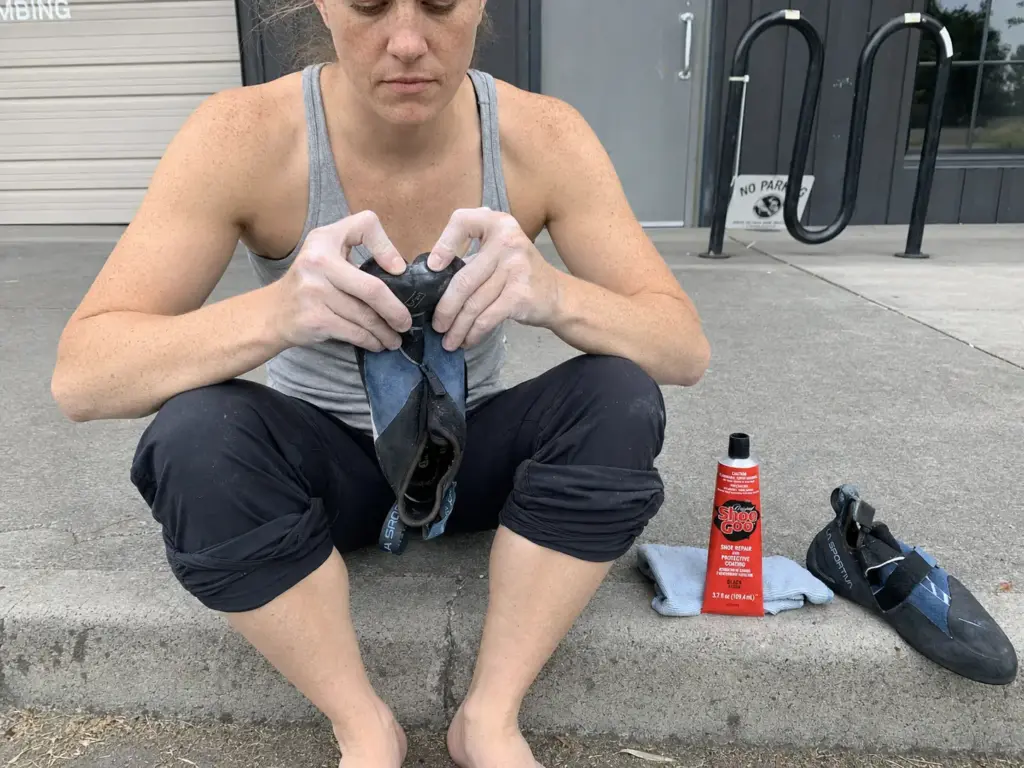

There are four damage stages. Surface Peel — less than 5mm of separation at the rand seam with no missing rubber — is DIY territory. Grab your Renia and get to work tonight. Rounded Edge — where the toe has lost its 90-degree bite and the sole is under 1mm thick — means professional resole. A DIY patch on worn-out rubber isn’t structural; it’s a Band-Aid on a liability. Exposed Rand (the thinner rubber under the outsole is visible) pushes you into pro resole plus a toe cap. Upper Damage — a hole through the leather or synthetic fabric — means retirement. No glue fixes a structural failure in the upper.

Check the exact rubber depth threshold that tells you a resole is cheaper than a patch before committing to DIY on a worn shoe.

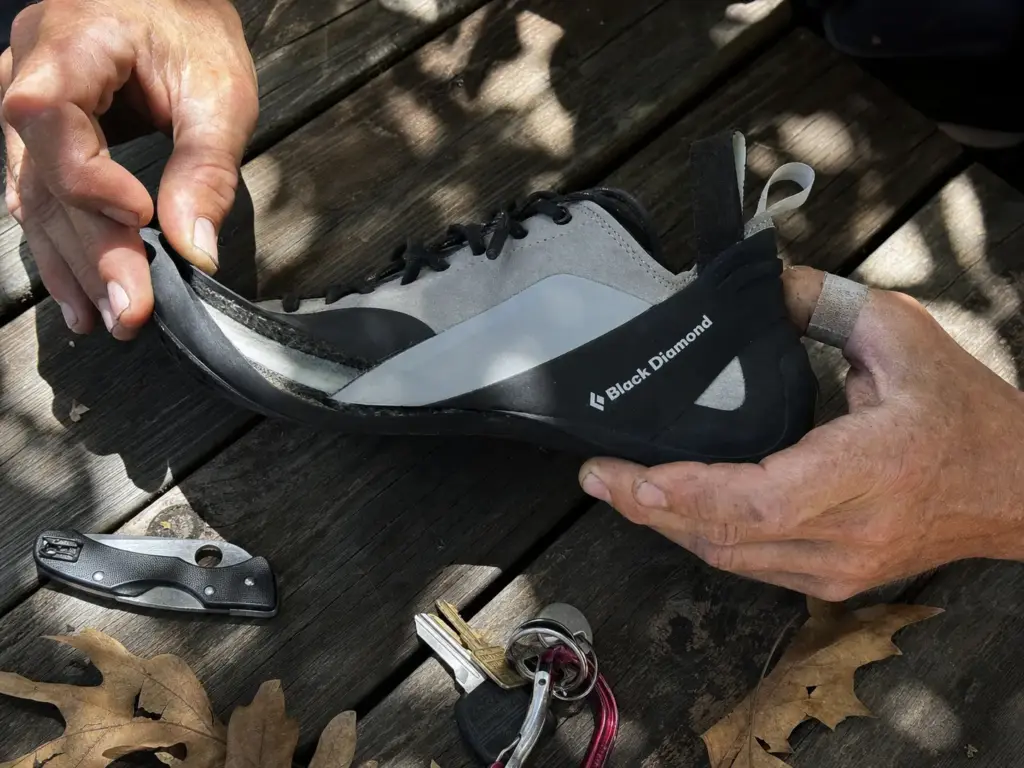

A diagnostic most people skip: press your fingernail into the midsole. If it compresses slightly (EVA or leather-board foam — open-cell midsole), it will absorb adhesive like a sponge and needs a double-coat protocol. If it feels rigid and repels pressure (closed-cell midsole, rigid PU), it needs a mechanical key to bond. These need different approaches.

Don’t overlook the P3 stress-relaxation window. An aggressive shoe — a Solution, a Drago — left delaminated for more than 2–4 weeks may never regain its original downturn. The synthetic upper stress-relaxes into the flatter shape permanently. Repair immediately or accept a shoe that will never again perform the way it fit your foot.

On cost: a DIY kit runs $25–$45. A professional half resole costs $45–$65 with a 3–8 week turnaround. New shoes cost $150–$250. The math only works in your favor if the DIY repair holds. A failed fix means you’re paying for the resole anyway, plus the new shoes.

Check Scarpa’s warranty distinction between rubber separation and normal wear before going near the shoe with glue if it’s under a year old. Document the failure with photos and contact the manufacturer first. La Sportiva‘s warranty covers original materials and workmanship but explicitly excludes hot-car storage damage.

The Wall of Shame — Glues That Will Destroy Your Shoes

The number one question on forums: “Can I use Gorilla Glue on climbing shoes?” The answer is no — and why matters more than the answer.

Gorilla Glue is a polyurethane foam adhesive. It expands on curing. Apply it to a rand that’s already separating and you’re adding internal pressure that physically pushes the rubber further away from the upper. It’s also too rigid for the dynamic flex of a climbing sole under shear stress. Gorilla Glue fails at the thing that matters most — staying bonded when you load the toe on a steep smear.

Super Glue (cyanoacrylate) is even more fragile in this application. It creates a bond that’s rigid enough to shatter under the lateral forces of a toe hook. The glue is far harder than the rubber, which creates a stress concentration at the adhesive interface. It also has zero open time for repositioning, and it contaminates the rubber surface in a way that makes proper re-bonding harder. Use it as a temporary field fix to stop a small peel from growing before your next session — nothing more.

Shoe Goo occupies a gray area. It’s flexible, which is correct, but it critically lacks the tack to bond to technical rubber surfaces with low surface energy. Acceptable for sealing a 1–2mm rand nick to stop crack propagation. Not acceptable for structural delamination repair. Treat it like a weatherstripping material, not a cobbler’s cement.

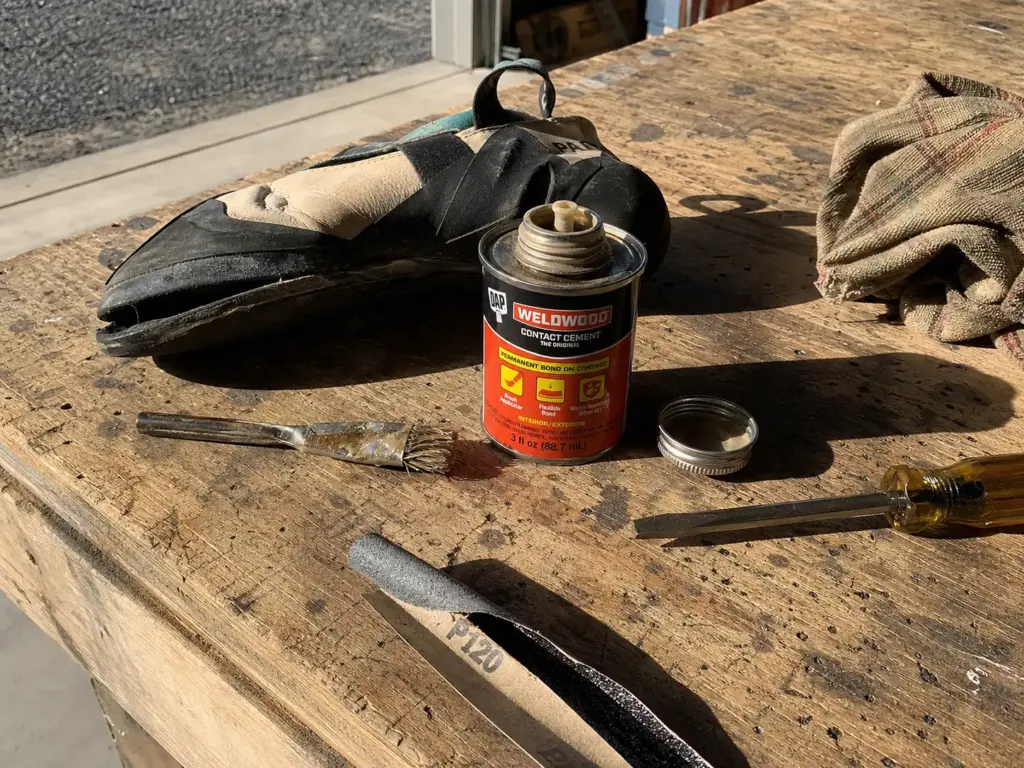

Hardware store contact cements are formulated for wood and laminate. Their solvent carriers — hexane, naphtha — can’t polarize the polymer chains of climbing rubber. The adhesive wets the surface but never creates a chemical key.

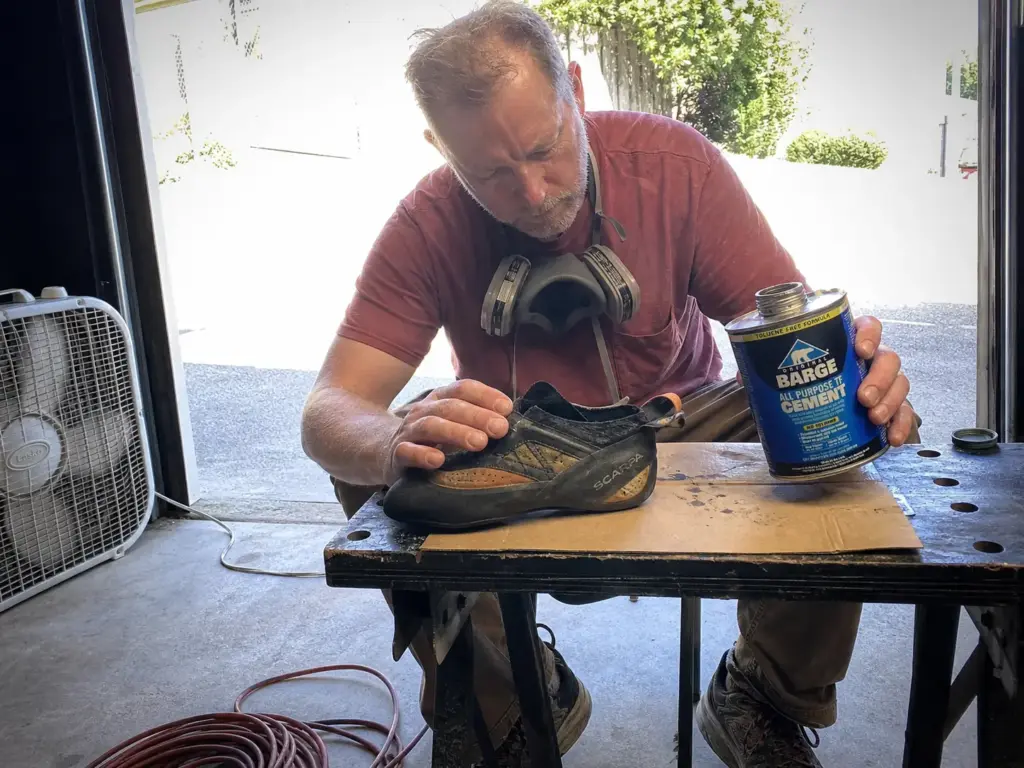

The toluene issue deserves straight talk: original Barge All-Purpose cement carries 600+ g/L VOC with toluene as the primary solvent. Toluene is classified by NIOSH with a 100ppm REL — that’s OSHA-mandated ventilation requirements for toluene-based adhesives that most dirtbag workshops ignore.

Watch this demonstration of mechanical roughening and correct open-time technique with Barge cement — two steps most DIYers skip entirely:

Every piece of your gear has a failure timeline — not just your shoes. Every piece of gear — not just your shoes — has a hidden failure timeline worth tracking before you decide whether a patch is a real repair or a postponed replacement.

The Gold Standard Adhesives — What the Pros Actually Use

Renia Syntic Total is the professional cobbler’s first choice for climbing rubber. Polyurethane-based with an acetone/MEK/xylene carrier, it bonds to Vibram XS Edge, XS Grip 2, and synthetic uppers at a level of permanence that contact cements can’t match. It can be sanded immediately after cure, which tells you something about bond density. For any structural delamination on a performance shoe, this is your adhesive.

Renia Colle de Cologne is the field repair version — toluene-free neoprene formula with fast tack. Good when you need to get back on the wall in 30 minutes rather than 24 hours. Slightly lower heat resistance than Syntic Total, but far faster than waiting.

AquaSeal +SR (Freesole) is a thermoset urethane that cures via moisture, no solvents required. Excellent heat resistance and ideal for rand hole sealing. But its 24–72 hour cure window and thick consistency make it the wrong tool for wide-area rebonding. Use it on the edges and holes, not the face.

Get the chemical process of cross-linking polymer chains that determines adhesive bond permanence right — this is why professional PU adhesives outperform consumer products at a molecular level.

The key compatibility rule: the adhesive’s flexibility must be equal to or lower than the rubber compound it’s bonding. A rigid adhesive on soft rubber like XS Grip (Shore A 67–73) creates a stress concentration at the interface. That’s why generic contact cements consistently fail on high-performance rubber — it’s not the brand, it’s the hardness mismatch.

Once you’ve chosen the right adhesive, build a maintenance routine that keeps your rubber in bonding-ready condition between repairs.

Pro tip: Buy Renia Syntic Total in the 90g tube for DIY use. It stays workable for 12–18 months if you replace the cap immediately after each use. The big cans are for shops with daily throughput, not your gear closet.

The Six-Step Protocol — Fixing It Like a Professional Cobbler

This is where most DIY repairs fail — not in the choice of adhesive, but in the execution. Follow this sequence exactly.

Step 1 and 2 — Mechanical Debridement and Chemical Polarization

Sand both surfaces with 80–120 grit sandpaper until you see deep black rubber. No white film, no shiny patches. That whitish oxidized layer is the bond killer — sanding removes it and creates a mechanical key that increases bonding surface area by up to 300%.

Use flat sandpaper wrapped around a cork block, not a sanding sponge. The sponge follows the rubber’s curve and rounds the edge you’re trying to square back up. The goal is a clean, 90-degree edge at the rand seam.

Then wipe everything with pure acetone — not nail polish remover, which contains lanolin and skin conditioners that actively lower the surface energy and guarantee bond failure. Use 99% isopropyl minimum on a lint-free cloth. Allow 2–5 minutes of full evaporation before moving forward. Moisture inhibits polyurethane cross-linking.

Pro tip: Old adhesive residue that won’t sand away can be softened with a brief heat gun pass — 2–3 seconds at medium heat, never directly on the rand. Let it cool before sanding.

Step 3 and 4 — Adhesive Application and Managed Open Time

Apply a thin, even coat to both surfaces using a throwaway acid brush. Foam brushes leave residue. You’re aiming for a microscopic sheen — not a thick, glossy layer. More adhesive does not mean stronger bond. For open-cell midsoles (EVA or leather board), apply a second primer coat after 10 minutes to compensate for absorption.

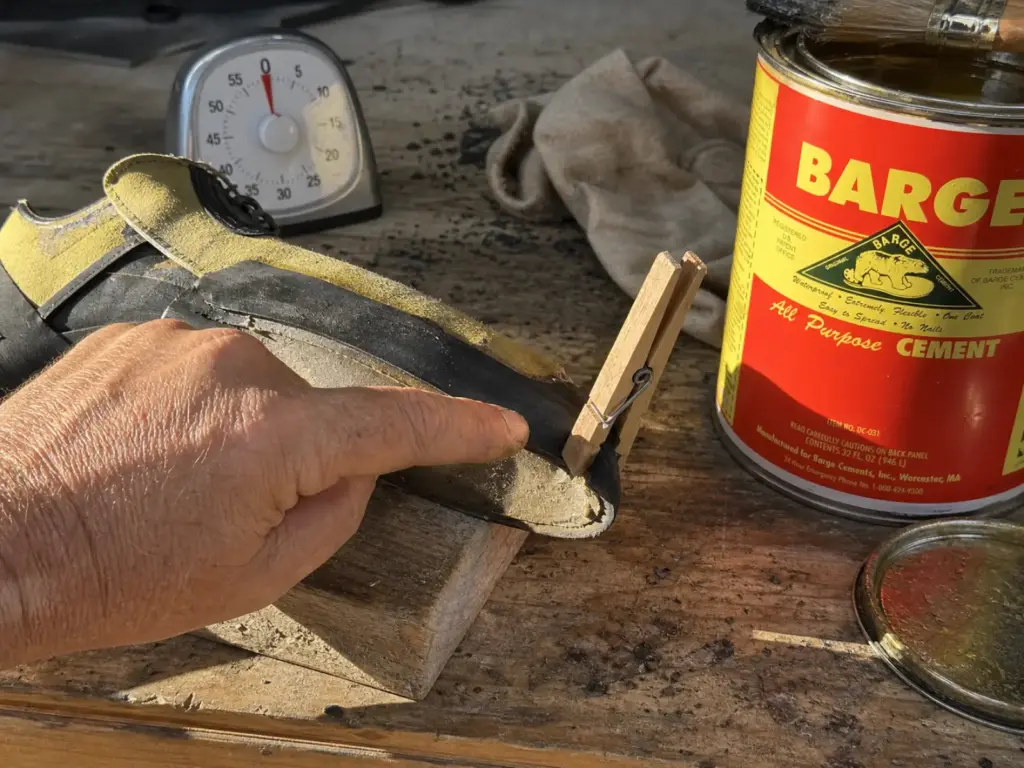

Wait 15–20 minutes. Then run the fingerprint test: touch the surface lightly with your knuckle — not your fingertip. Tacky but not wet means ready. Wet means wait. If you join wet surfaces, the trapped solvent outgasses and creates micro-bubbles at the interface. Those bubbles expand during a hard session and cause the sole to skate across the adhesive layer rather than peeling cleanly from the rock — an invisible failure mode that announces itself mid-redpoint.

If you exceeded the open time and the surface went dry: run a heat gun over both surfaces for 3–5 seconds at approximately 60–70°C. This reactivates the polymer chains. Join immediately.

Step 5 and 6 — Mechanical Pressure and Thermal Activation

Bond strength in contact cement is set by the force of initial contact, not by how long you hold it. Use a rubber mallet or heavy hammer to knock on the sole firmly, working from the toe tip along the rand seam. Strike laterally into the seam — not pressing down vertically. The rand interface is a shear surface, and your mallet strike should simulate the shear direction the rubber will experience on a smear or edge.

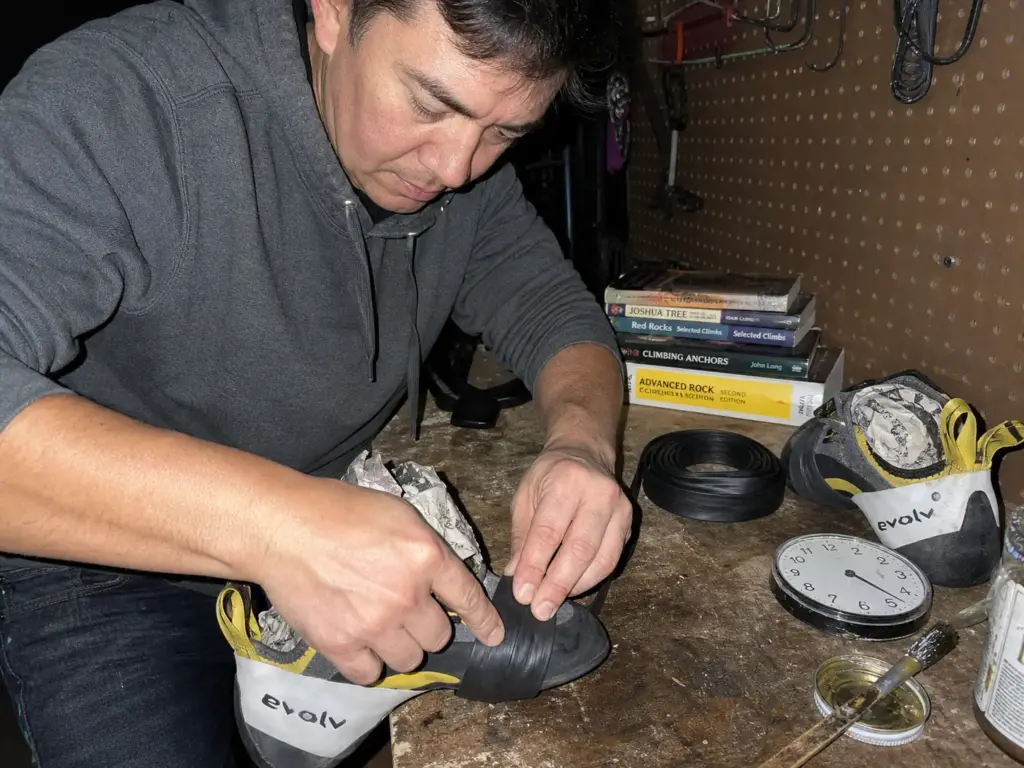

Without a hydraulic press (Vibram Academy protocol calls for 6–13 atmospheres), your DIY option is to load the shoe under books, a G-clamp with rubber pad, or a car jack block for 30–60 minutes. The water-bag trick works: fill a small plastic bag with water, press it against the repair, and compress with binder clips along the seam. Water distributes pressure uniformly.

Curing time before climbing: 24–48 hours minimum. At 4 hours the bond is about 70% strength — don’t trust it for the crux sequence. Full cure: 72 hours. This is how the rand tension you’re restoring is what keeps your shoe’s aggressive geometry alive.

Prevention and Longevity — Making the Repair Last

The Footwork Cure — Why Technique Is Gear Maintenance

Toe-drag delamination at the rand tip is almost always a footwork failure, not a manufacturing defect. Modern gym walls with Walltopia-style textures act as industrial sandpaper — beginners can shred rands in two months on these surfaces. Elite climbers extract 200% more life from the same soles, not because they have harder rubber, but because they place their feet precisely.

Run the footwork mechanics that prevent toe drag from destroying your rand in the first place. “Silent Feet” drills on the bouldering wall — moving in complete silence, no rubber scrapes, no dragging — train the precise placement that eliminates rand abrasion.

The scuff test: after a session, wipe the toe rand with a white cloth. Heavy rubber transfer on the cloth means dragging. Use it to trace your most common foot placement error.

Storage, Heat, and the 60°C Rule

Never store your shoes in a car in summer. The softening point of most contact cements drops below what a vehicle interior reaches on a warm day. Store in a mesh bag in a cool, dry space — not a sealed gym bag, which traps moisture that accelerates PU hydrolysis. Humidity above 80% RH during storage also attacks urethane crosslinks over time.

Avoid prolonged UV exposure. 100+ hours of direct sun creates the whitish rubber oxidation film on the polymer backbone — the same film that blocks adhesive bonding. Rotate shoes if you own two pairs. Valentina Petrolli of Curada Resole puts it plainly: “Maintain a two-pair rotation. You never want to rush a 2–3 week repair cycle because you have one pair.”

The Rand Nick Protocol — Stopping Small Peels Before They Grow

A 1–2mm rand nick at the toe costs nothing today and $65+ to fix in three months when it propagates to a full delamination. Seal the edge with Shoe Goo or Renia Colle de Cologne — applied from the inside of the seam, not the exterior rubber face. Sealing from the outside creates a ledge that peels under lateral stress.

The bicycle puncture kit trick: vulcanizing fluid from a bike patch kit chemically melts micro-tears in the rand rubber together. It’s not structural, but for tiny holes in the rand material itself, it holds in a way that standard contact cement cannot.

Pro tip: Dedicated footwork sessions in complete silence on the bouldering wall — no scrape sounds — will train the precise foot placement that keeps your rands intact far longer than any glue.

When to Call the Professionals — Finding a Trusted Resoler

Know the precise wear indicators — measured in millimeters — that define the resole timing window before deciding whether this is your job or theirs.

The Three Non-Negotiable Signals to Stop and Send It In

Exposed rand: the thinner rubber under the outsole is visible. DIY here means bonding to a structurally compromised substrate. It won’t hold. Ship it.

Hole through the upper: no adhesive repairs fabric or leather structural failure. The shoe is retired or sent for professional assessment.

Multiple failed DIY attempts: each re-bond without full debridement adds adhesive-to-adhesive contact rather than adhesive-to-rubber contact. Far weaker, far shorter lifespan. If the bond is peeling again within two weeks of your repair, you have contaminated the substrate. Stop and send it. Photograph all delamination zones with a ruler, note where you climb and what glue you used, and include that information when you ship.

Evaluating a Resoler’s Technical Credentials

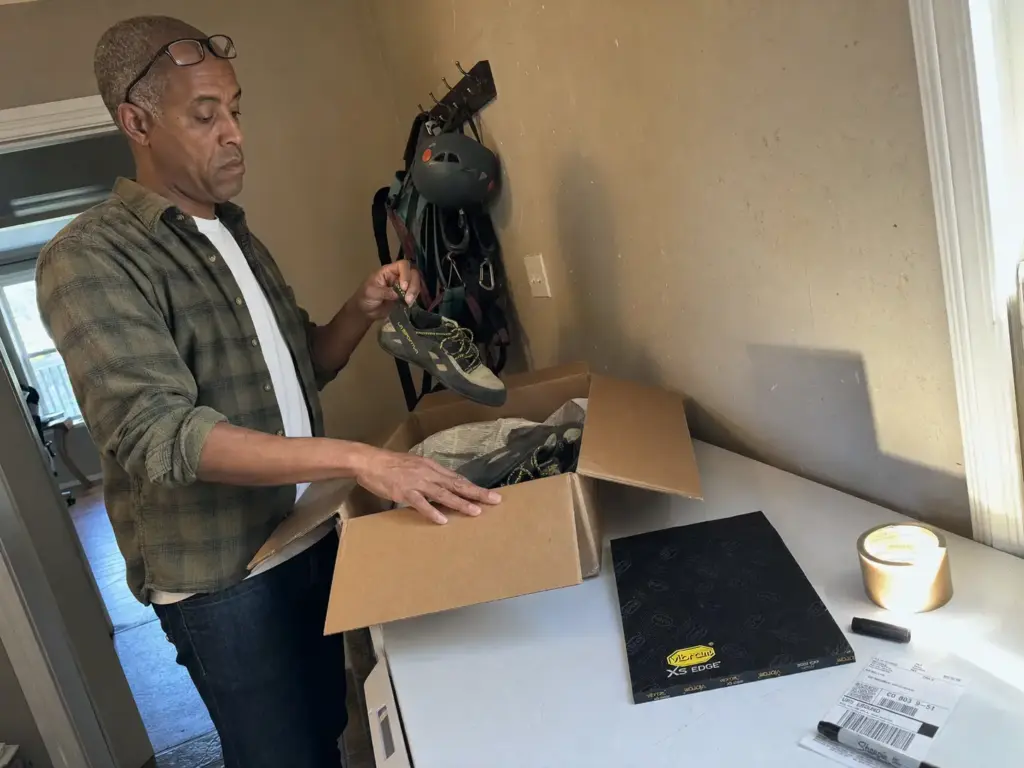

The question to ask directly: “What press do you use?” NuShoe runs 13-atmosphere hydraulic press cycles. Hand-pressed repairs can’t eliminate micro air pockets the way hydraulic pressure does, and that distinction shows up after your second 5.12 in the rebuilt shoes.

Authorized resolers for La Sportiva and Scarpa use manufacturer-spec rubber — critical for maintaining P3 platform geometry. For a Solution or a TC Pro, the wrong rubber compound changes the shoe’s entire performance profile.

The top shops by specialty: Rock and Resole (La Sportiva/Scarpa, authorized parts), Yosemite Bum (Evolv/Trax, fastest turnaround at 3–4 days), Rubber Room (Bishop focus, custom reconstruction), and NuShoe (large-scale, 13-atm press cycles). Plan for 3–8 weeks standard and build that into your rotation.

A professionally resoled shoe performs the same as new but with one advantage new shoes don’t have: it’s already broken in to your foot geometry. The resoler resets the clock on a custom-fit tool.

Conclusion

Three things that matter when you’re staring at a separating rand:

Delamination is a diagnostic signal, not a final verdict. Look at the location — toe tip means footwork failure, arch seam means P3 platform overload. The location tells you both the fix and the prevention.

The preparation is the repair. Sand to black rubber. Clean with pure acetone. Pass the fingerprint test. Apply. Skip any of those steps and you’re gluing to an oxidized surface, and your bond will fail the next time those shoes sit in a warm car.

Act immediately. An aggressive shoe left delaminated for a month may never recover its downturn. The rand tension that powers your footwork is bleeding away every day you wait.

Take the damaged shoe off the shelf this week. Run the four-stage diagnostic from this guide. If it’s a surface peel, you have everything you need to fix it tonight. If it’s past that threshold, ship it before the geometry is gone. Your shoes are the most technically intimate piece of equipment you own — treat them accordingly.

Now go send something.

Safety Notice: Rock climbing and mountaineering are inherently high-risk activities that can involve physical trauma or fatal incidents. The information on Rock Climbing Realms is for educational and informational purposes only. Techniques and advice presented here are not a substitute for professional, hands-on instruction. Conditions and risks vary by location. Always seek guidance from a qualified instructor before attempting new techniques. By using this website, you agree that you are solely responsible for your own safety. Any reliance you place on this information is strictly at your own risk, and you assume all liability for your actions. Rock Climbing Realms and its authors will not be held liable for any harm, damage, or loss sustained in connection with the use of this information.

Affiliate Disclosure: We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn advertising fees by advertising and linking to Amazon.com. As an Amazon Associate, we earn from qualifying purchases. We are also an official affiliate partner of Black Diamond Equipment via the AvantLink network. If you click on a Black Diamond affiliate link and make a purchase, we may earn a commission at no additional cost to you. We also participate in other affiliate programs. Additional terms are found in the terms of service.
