Climbing Pulley Systems: Master Mechanical Advantage

Mechanical advantage isn’t just a complex physics problem; it’s a practical superpower for overcoming challenges when you climb. Have you ever been pinned down by a heavy haul bag against the force of gravity, or felt helpless, unable to assist a stuck partner? A rock climbing pulley system is the elegant solution. This guide demystifies the topic, framing it as a real-world benefit for any climber seeking greater self-sufficiency and strength. We will provide a complete roadmap to understanding, building, and safely using pulley systems—from core principles to advanced applications. You’ll learn about mechanical advantage, the different types of systems, essential gear, and critical safety considerations.

The Core Principles: What is Mechanical Advantage in Climbing?

To understand any mechanical advantage system, it’s essential to grasp the foundational knowledge of how they work. We’ll move beyond simple definitions to explain the practical implications of force multiplication and explore the difference between theoretical ideals and the real-world performance you can expect on the rock.

Defining Force Multiplication and MA Ratios

A climbing pulley system uses a rope, pulleys, and hardware to gain mechanical advantage (MA), which is the factor by which the system multiplies your applied force. This is shown as a ratio, like 3:1 or 5:1. For every one unit of force you apply, the system exerts three or five units on the load. This principle makes tasks like hauling heavy gear on big walls or performing a rescue possible for one person.

The concept is rooted in physics, which explains how these systems distribute a load across multiple strands of rope, including the load strand, to multiply input force. You don’t need deep engineering knowledge, but understanding this distribution is key. The main goal is always to reduce the physical effort needed to move a heavy load. A system’s MA isn’t static; it can change based on the puller’s position. For instance, a rescuer pulling from a separate position might create a 1:1 advantage, but if the person being lifted pulls on the rope, they become part of the system, creating a 2:1 advantage.

Ideal vs. Actual Mechanical Advantage (IMA vs. AMA)

Ideal Mechanical Advantage (IMA) is a system’s theoretical power in a perfect, frictionless world. It’s calculated from the system’s geometry, often by counting the rope strands supporting the load. For instance, a Z-drag system has an IMA of 3:1 because three rope strands pull the load. This number gives a baseline for a system’s potential, but it doesn’t reflect its true performance.

Actual Mechanical Advantage (AMA) is the system’s real-world output, which is always lower than the IMA because of energy lost to friction. Friction occurs wherever the rope bends or touches a surface, such as a pulley sheave, a carabiner, or a rock edge. Understanding the difference between IMA and AMA is what separates basic knowledge from practical mastery. It explains why a 3:1 system might feel more like a 2.2:1 system in practice.

While calculating precise AMA in the field is complex, climbers can use estimations to make better decisions. For example, a high-efficiency pulley may operate at over 90% efficiency, whereas a carabiner used for the same purpose might only be 50% efficient. According to experts at Rigging Lab Academy, understanding pulley efficiency in rescue operations is key. This major difference in component efficiency is why actual performance rarely matches the ideal ratio.

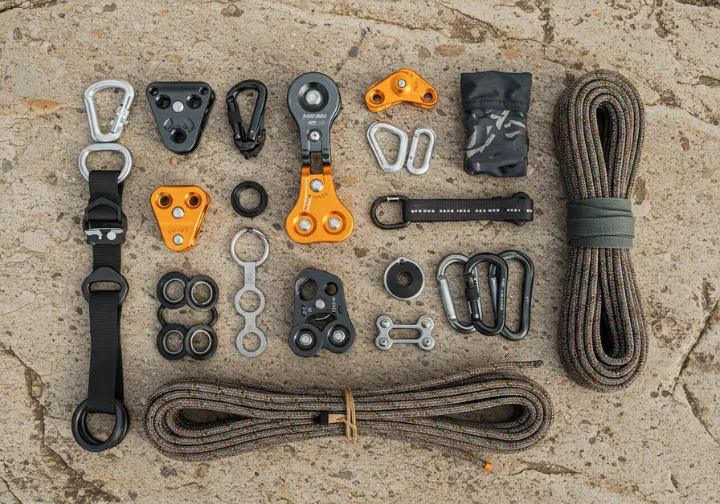

The Building Blocks: Essential Gear for a Rock Climbing Pulley System

A reliable pulley system is built from specialized hardware. This guide details each component, explaining its function and highlighting the features most critical for safety and efficiency, going far beyond a simple gear list.

Choosing the Right Climbing Pulleys

Climbing pulleys are specialized tools, and selecting the right quality pulley is critical for efficiency and safety. They can be categorized by function, with key types being progress capture, Prusik-minding, and high-efficiency swivel pulleys. A progress capture pulley like the Petzl Micro Traxion has an integrated cam that automatically stops the load from slipping backward. This feature greatly simplifies hauling and rescue systems.

Prusik-minding pulleys (PMPs) have specially shaped side plates that work with a Prusik hitch, preventing the hitch from getting sucked into the device. This is essential for creating reliable progress capture with traditional cordage. Brands like DMM and SMC offer excellent examples of pulleys designed for this critical function. For any life-safety equipment, it’s wise to consult the official UIAA standards for Pulleys. Pulleys are essential tools for climbers who need to manage loads effectively.

High-efficiency and swivel pulleys offer the highest level of performance for complex rescue or heavy hauling; some might consider these heavy-duty pulleys. High-efficiency models use ball bearings to minimize friction, achieving efficiencies of 91-95% or more. Swivel pulleys, like Petzl’s SPIN series or the specialized isc alf climb, allow the pulley to align itself perfectly under load, which prevents rope twist and further optimizes the system.

Ropes, Carabiners, and Ascenders

The rope choice significantly impacts a pulley system’s performance. Static ropes are generally preferred for hauling and rescue because their minimal stretch transfers your pulling effort directly to the load, making the system more efficient. The stretch in a dynamic rope, which is vital for absorbing fall energy, will absorb some of your pulling force before the load even moves. Your total climbing setup, including harnesses, belay devices, and shoes, works together with these systems.

Carabiners are often used to redirect the rope, but they are a major source of friction. A rope running over a carabiner is only about 50% efficient, meaning half the force is lost to friction. A good pulley, in contrast, is over 90% efficient. While a carabiner is acceptable for a simple redirect, any point in the system that moves under load should use a pulley. Oval-shaped carabiners are often favored because they distribute loads evenly. When building systems, remember that locking carabiners are essential for belaying and building anchors.

Mechanical ascenders from brands like Petzl or Black Diamond are often integrated into hauling systems, especially for big wall climbing. These devices grip the rope securely, acting as a progress-capture device or as the “tractor” that pulls the rope. For lighter setups, friction hitches like a Prusik or Klemheist tied from accessory cord can serve the same purpose.

System Architectures: Simple, Compound, and Complex Systems

Climbing pulley systems can be categorized into several primary types. By providing clear definitions and examples for each, we can help you understand their pros and cons and select the right architecture for the job.

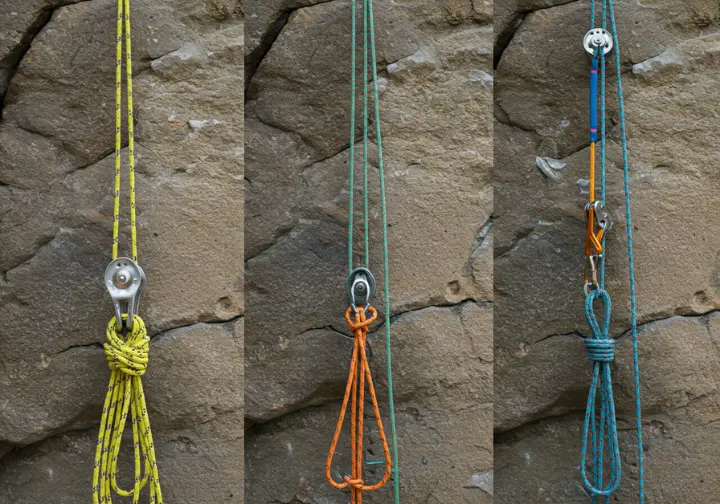

Simple Pulley Systems (1:1, 2:1, 3:1 Z-Drag)

Simple pulley systems are defined by a single, continuous rope where all moving pulleys travel toward the anchor at the same speed. The Ideal Mechanical Advantage (IMA) of these systems is easily estimated by counting the rope strands directly supporting the load. This category includes the most common systems used in climbing and rescue.

Examples include a basic 1:1 redirect, which only changes the pull direction, and a 2:1 “Dropped Loop” system, which doubles the applied force. The most famous simple system is the 3:1 “Z-drag,” named for the “Z” shape the rope forms. The Z-drag is widely taught for crevasse rescue because it offers a good balance of mechanical advantage and simple setup. It is truly essential for effective crevasse rescue.

Simple systems are easy to understand, set up, and require less equipment. However, their efficiency is highly dependent on component quality. Substituting carabiners for pulleys introduces significant friction and reduces the Actual Mechanical Advantage. To perform optimally, a Z-drag requires a progress-capture pulley and another high-efficiency pulley. You can find excellent guides on setting up a 3:1 Z-drag online.

Compound and Complex Pulley Systems

A compound pulley system is created when one simple system pulls on the haul line of another simple system. The key principle is that the mechanical advantages of these individual mechanical advantage systems multiply, they do not add. For instance, if you use a 3:1 system to pull on the haul line of a 2:1 system, the resulting IMA is 6:1 (3 x 2).

Compound systems provide very high mechanical advantage, which is useful when a small team needs to lift a heavy victim or haul massive loads on a big wall. Their main disadvantage is complexity; they are harder to set up, require more rope, and can be difficult to manage. The different systems within these complicated pulley systems may also collapse at different rates, requiring complicated resets. These are often used to build efficient hauling systems for big objectives.

Complex pulley systems are those that do not fit the rules of simple or compound systems. They are often specialized configurations with specific names, like the “Spanish Burton.” While they can offer high MA with minimal gear, they are hard to remember and rig under pressure, making them less common in recreational climbing.

Practical Applications: Your Rock Climbing Pulley System in Action

Theoretical knowledge becomes practical skill when you see how pulley systems work in the real world. Here, we focus on the “how-to” by detailing their most common applications, providing actionable advice for specific climbing scenarios.

Hauling Systems for Big Wall Climbing

On multi-day big wall climbs, pulley systems are an absolute necessity for moving heavy haul bags. The most common setups are 1:1, 2:1, or sometimes 3:1 systems, depending on the bag’s weight and the climber’s personal strength. A 1:1 system involves direct hauling, while a 2:1 system cuts the required pulling effort in half and is a very common choice. These are a staple of multi-day big wall climbs.

Efficiency is critical for big wall hauling, as the action is repeated hundreds of times. Using a high-strength, high-efficiency, progress-capture pulley like the Petzl Pro Traxion is standard for serious big wall climbers. This device combines a large, efficient sheave with a robust, integrated cam, making the hauling process as smooth as possible. A technique known as “space hauling” is often used, where the second climber adds their body weight to the system to assist.

Crevasse Rescue Pulley Systems

Crevasse rescue is one of the most critical applications, where speed and efficiency can be life-saving. When a climber falls into a crevasse, the team on the surface must quickly build a system for pulling up their partner. The 3:1 Z-drag is the most common system for this because it can be built with the gear a standard glacier travel team carries. When you need to assist a stuck partner, these skills are invaluable.

The environment creates unique challenges, such as the rope cutting into the crevasse lip, creating immense friction. To combat this, rescuers must build a solid anchor and pad the lip with an ice axe or backpack to let the rope run smoothly. Using an actual assist pulley instead of a carabiner is crucial here, as the added efficiency can make the difference between a successful rescue and exhausting the team. If a 3:1 system isn’t enough, a compound 6:1 system can be constructed to make progress.

The Dangers of DIY Climbing Pulley Systems

Climbers often ask if they can use inexpensive pulleys from a hardware store for non-life-support uses like home climbing walls. It is critical to understand that hardware store pulleys are not designed, tested, or rated for climbing or any life-support application. Their load capacities are based on static loads, not the dynamic forces generated in climbing, and they lack UIAA or CE safety certifications.

Using non-rated hardware where failure could lead to injury is extremely dangerous. The materials and construction are vastly inferior; a hardware store pulley can fail at a fraction of the load a certified climbing pulley can handle. Even for adjustable home climbing walls, where failure could cause the wall to collapse, using climbing-rated gear is a much safer choice. The message must be clear: if a system supports a life or could cause injury if it fails, you must use certified climbing gear. This is especially true when creating a safe and beneficial climbing wall for children at home.

Mastering Efficiency, Safety, and Best Practices

Using pulley systems effectively requires synthesizing knowledge into best practices. The focus now shifts to actionable advice for maximizing performance and minimizing risk, reinforcing a commitment to both skill development and safety on the rock.

Minimizing Friction to Maximize Power

Friction is the primary enemy of an efficient pulley system. The largest sources of friction are carabiners used instead of pulleys, rope rubbing against rock, and pulleys with small sheaves or inefficient bushings. To optimize your system and make it pull easier, you must prioritize using high-efficiency, ball-bearing pulleys at all moving points of direction change. If you want to see the numbers, you can find a good analysis of the difference in friction between a pulley vs carabiner online.

System alignment and edge protection are also critical. Ensure ropes run as straight as possible and are not rubbing against each other. When hauling over an edge, using a pack or dedicated edge protector can dramatically reduce drag and prevent rope damage. The rope itself plays a role; a stiffer, newer rope may have more internal friction. A simple, well-aligned system with high-quality pulleys will almost always outperform a complex system riddled with friction.

Anchor Integrity and Force Distribution

A pulley system is only as strong as its anchor, and understanding the forces applied to that anchor is a non-negotiable safety requirement. The anchor for any hauling system must be “bomber,” often built with multiple redundant components. The anchor holds the load’s weight plus the pullers’ force and system friction. When it comes to securing climbers to anchors, there is no room for error.

Forces on an anchor can be multiplied depending on the configuration. It is critical to understand vector forces, especially the “120-degree rule.” When the angle of the rope connecting multiple anchor points exceeds 120 degrees, the force on each point becomes greater than the load itself. Keeping angles small is crucial for distributing loads effectively. Before applying force, perform a thorough safety check of the entire chain, from load to anchor.

Gear Inspection and Retirement

All components of your pulley system—pulleys, carabiners, ropes, and cordage—are life-saving equipment that requires regular inspection and proper maintenance. Before each use, perform a quick visual and tactile inspection for any obvious damage. Periodically, conduct a more thorough check, looking for sharp edges on pulleys, proper sheave rotation, and any rope damage. Following this process of regular inspection and proper maintenance is essential.

Manufacturers provide detailed guidelines for the inspection and retirement of their gear. Following these protocols is essential for safety. This includes cleaning your gear and storing it properly away from chemicals, sunlight, and heat. Every piece of climbing gear has a finite lifespan, even if unused. Most manufacturers recommend retiring textiles after a maximum of 10 years. Hardware must be retired immediately if it sustains a major fall or shows significant wear. When in doubt, always retire the gear.

Key Takeaways for Mastering Your Pulley System

• Prioritize Efficiency Over Complexity: A simple, low-friction system is almost always better than a complex, high-friction one. Your primary goal should be to minimize friction by using high-quality pulleys instead of carabiners for moving direction changes.
• Safety is Systemic: Your pulley system is a chain where the weakest link determines its strength. Pay equal attention to the load, the components, the rigging, and especially the anchor. A strong system on a weak anchor is a recipe for disaster.
• Know Your Gear: Understand the difference between progress-capture pulleys, PMPs, and standard pulleys, and choose the right tool for the job. Read manufacturer instructions and regularly inspect all your hardware and software for wear, retiring any piece that is compromised.
• Practice Before You Need It: The time to figure out how to build a Z-drag is not during a real emergency. Practice setting up and operating these systems in a controlled environment until you can do it quickly and correctly without hesitation.
• Embrace Continuous Learning: Mechanical advantage is a deep topic. Move beyond rote memorization of setups and strive to understand the underlying principles of force and friction. This deeper knowledge will allow you to adapt, improvise, and solve problems safely and effectively in the field.
