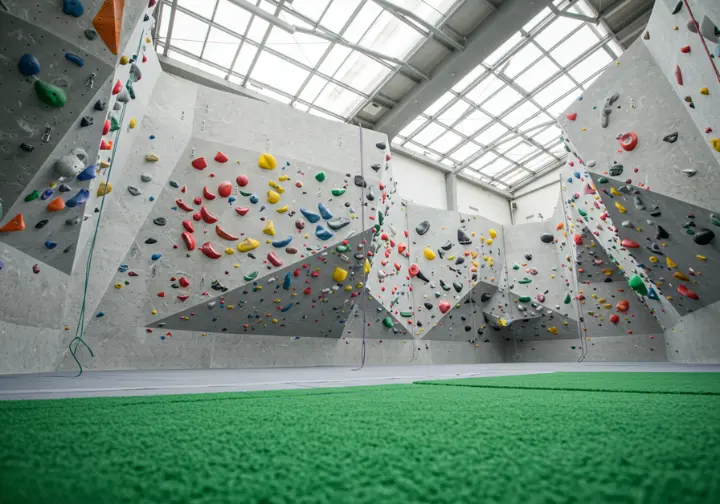

All Parts of a Climbing Wall: From Frame to Holds

A climbing wall is far more than a simple structure; it’s a complex, engineered system where every component is crucial for safety, performance, and longevity. From the unseen frame bearing the load to the holds that serve as the climber’s direct point of contact, understanding all parts of a climbing wall is paramount. This knowledge is essential for climbers, climbing gym owners, route setters, and DIY builders to make informed decisions. This article promises a comprehensive, part-by-part deconstruction of a modern rock-climbing wall, covering materials, function, and design from the structural core to the safety systems.

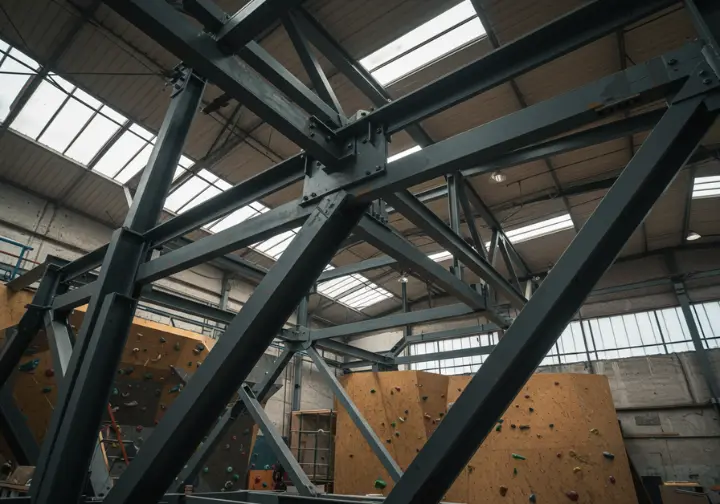

The Foundation: Frame and Support Structures

The unseen skeleton of an artificial climbing wall is its frame and anchoring system. This foundational structure is engineered to bear all static and dynamic loads, from the wall’s own weight to the forces generated by a falling climber. The design and material choices for this wall framework are fundamental to the wall’s stability and overall safety, forming the literal backbone of the entire indoor climbing experience.

The Skeletal System: Frame Materials

The frame is the primary load-bearing structure to which all climbing panels are attached. Its material dictates the strength, potential wall shape, and total cost of the artificial climbing structure, representing a balance between durability, design complexity, and sustainability. Common framing materials for the engineering of artificial climbing structures include wood, steel, and Glued Laminated Timber (Glulam).

Wood is a traditional choice, especially popular for home walls, often called ‘woodies,’ and some commercial bouldering walls. Lumber dimensions like 2x6s or 2x8s are common, with taller or overhanging walls requiring wider boards to ensure rigidity. For maximum structural integrity, selecting straight, knot-free pieces of wood is critical. These wall studs run vertically in a house’s walls, providing the core of the structure.

Steel is the material of choice for most large, modern commercial gyms due to its exceptional strength and ability to create complex, self-standing structures. Profiles like I-beams and square tubing are frequently used. To prevent corrosion, especially for an outdoor wall, surface treatments such as galvanizing or exterior-grade paint are necessary. This metal frame provides unmatched strength.

Glued Laminated Timber (Glulam) is an increasingly popular sustainable alternative. This engineered wood product, made by bonding layers of lumber, boasts a high strength-to-weight ratio comparable to steel. Its production has a lower environmental footprint than steel, making it a key choice for eco-conscious wall design style.

Attached vs. Free-Standing Structures

Climbing walls are designed as either attached or free-standing structures. Attached frames utilize an existing structure, like a building’s interior walls or beams, for support. This approach can reduce material costs for the frame itself but demands a thorough structural assessment by a qualified engineer. The host building must be able to safely bear the additional dead loads of the wall and the live loads of climbers.

Free-standing structures are engineered to be entirely self-supporting. This design offers greater portability and avoids permanent modifications to a host building, making it suitable for rented spaces. However, it requires a more robust and often more expensive framework with significant bracing to ensure stability. A detailed structural guide for climbing walls provides further insight into these artificial structures.

For attached walls, anchoring into load-bearing elements like ferroconcrete or steel beams, as specified by manufacturers like Walltopia, is critical. For a free-standing wall, a more complex design is needed to compensate for the lack of external support and handle all dynamic forces independently. These principles apply even to a home bouldering wall.

Wall Angles and Key Elements

Fundamental framing members like studs and joists create the grid where panels are attached, typically spaced 16 or 24 inches on center. To increase rigidity and prevent the frame from twisting under load, bracing is essential. Triangular bracing is a common and effective method, particularly on overhanging or free-standing designs, defining the wall inclination.

Kicker panels are the short, near-vertical panels at the base of overhanging walls (typically steeper than 20-30 degrees). Their purpose is to provide foot placement at the start of a route. For DIY builders, a taller kicker makes starting climbs easier but can reduce the amount of challenging steep terrain on the new wall.

Wall angles and overhangs are primary factors in dictating climbing difficulty and style. While vertical walls can be less engaging for an experienced climber, flat, overhanging walls between 20-45 degrees are often considered the most versatile for sustained challenge. For reference, you can consult the IFSC competition wall guidelines, which can feature inclinations up to 60 degrees.

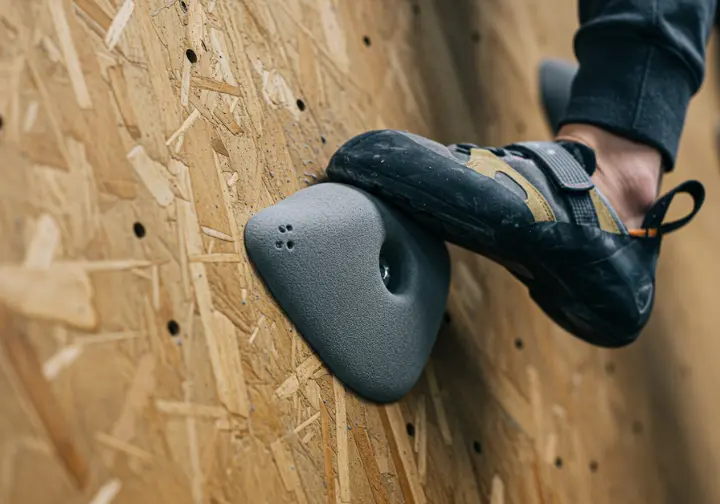

The Climbing Surface: Panels and Textures

The climber’s primary interface is the wall’s face, composed of panels and a crucial friction-providing wall surface. The properties of different panel materials, from standard plywood to advanced composites, and the methods for creating a durable surface are key elements. Understanding the materials and design of climbing walls is foundational to appreciating the rock-climbing experience.

Plywood and Other Panel Materials

A thickness of ¾ inch (18mm) is the critical minimum for climbing wall panels, providing the necessary strength to prevent flex and to properly seat T-nuts. Using thinner plywood is strongly discouraged as it increases the risk of T-nut pull-out and compromises safety. This hard surface must be resilient.

For DIY projects, ACX exterior plywood is a cost-effective choice that is best used when painted. The premium option, favored by commercial climbing gyms, is Baltic Birch Plywood. It features a void-free core, superior strength, and excellent T-nut retention. OSB (Oriented Strand Board) is not recommended due to poor T-nut holding power. These plywood panels form the rockface of the structure.

Materials beyond plywood are also used for commercial climbing wall panels. Fiberglass Reinforced Plastic (FRP) is durable, weather-resistant, and can be molded into complex 3D shapes. Concrete, either as Shotcrete or Glass Fiber Reinforced Concrete (GFRC), offers extreme durability and a realistic rock feel but comes with high weight and construction costs. Synthetic Resin Panels are also known for longevity and are used in high-end commercial walls.

Creating Surface Texture and Friction

Surface texture is critical for climbing performance, providing friction for feet (“smearing”) and helping to prevent climbing holds from spinning. A common method is using sand-in-paint, though this requires constant stirring. Lighter additives like crushed walnut shells or commercial products can provide a more even texture. For more detailed information, various climbing wall texturing techniques can be researched for your own wall.

Commercial texturing systems are designed for high-traffic environments. These often use advanced polymer coatings or multi-layered epoxy paints that are engineered to be extremely hard, wear-resistant, and easy to clean. Leading wall manufacturers like Walltopia develop proprietary systems with features like UV resistance and anti-dirt properties for their top-notch artificial walls.

The full texturing process involves meticulous surface preparation, priming the wood for proper adhesion, and applying a final sealant. A water-based polyurethane floor finish is often recommended to create a hard, non-tacky final surface. This prevents holds from sticking and protects the texture from wear. Failing to properly seal the texture is a common mistake that compromises the quality and lifespan of the climbing surface.

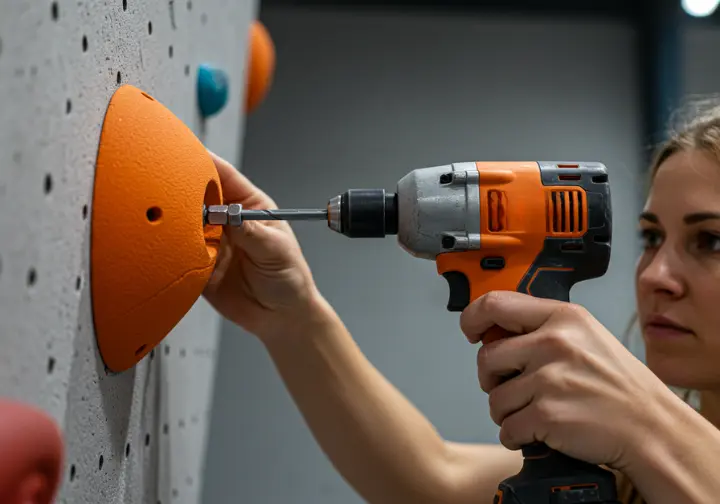

The Connection: Hardware and Attachment Systems

The wall hardware connecting a climbing hold to the wall is fundamental to safety. This includes the T-nuts embedded within the panels and the sturdy bolts and screws that fasten the holds. Proper selection and installation of these components are critical, as they form the direct link between the climber’s grip and the wall’s rigid structure.

T-Nuts: The Unsung Heroes

T-nuts are the threaded metal inserts installed on the backside of wall panels that provide the anchor points for holds. There are two main types: traditional 4-Prong (or pound-in) T-nuts, which are cost-effective but can be prone to spinning, and Screw-in T-nuts. The latter are preferred for their superior reliability, as they are secured with additional screws that prevent rotation. Thinking about how to install t-nuts correctly is a critical step for any basic wall.

Material choice depends on the environment. Standard indoor T-nuts are typically zinc-plated steel for basic corrosion resistance. For outdoor walls or humid locations, Stainless Steel T-nuts are essential to prevent rust. However, stainless steel is generally softer and requires more care during installation to avoid stripping the threads. Proper installation, including drilling perpendicular holes of the correct size from the front and seating the T-nut flush with the wood on the back of the wallboard, is vital for creating a functional climbing gym wall.

Bolts and Screws for Fastening Holds

The vast majority of holds are attached with bolts, and it is crucial to match the bolt head type to the hold’s design to prevent stress fractures. The most common types are Socket Head (or Cap Head) bolts for holds with a flat mounting surface and Flat Head (or Countersunk) bolts for holds with a conical, recessed hole. These pieces of climbing equipment ensure a secure ascent.

Standard bolt specifications in the US are 3/8″-16 thread size, while M10 is common in Europe. Bolt length is a major safety consideration. For a standard ¾-inch panel, the bolt must be long enough to fully engage at least 5-6 threads of the T-nut. Using a bolt that is too short is a major risk. When selecting the right climbing hardware, it’s clear that details matter.

Screw-on holds attach directly to the panel with wood screws instead of bolts. They offer flexibility for filling in spaces but are not ideal for frequent resetting, as they create new holes in the panel each time. It’s best to use strong decking screws and avoid brittle drywall screws, which are not designed for the dynamic loads generated by rock-climbing.

The Climber’s Interface: Holds and Volumes

The most tactile and defining elements of a rock climbing wall are the holds and volumes. These components are an artificially constructed wall with manufactured grips (or “holds”) for the hands and feet. This section covers the different hold types, the materials they are made from, and how large-scale volumes are used to create three-dimensional terrain for different climbing routes.

Anatomy of Climbing Hold Types

A route’s character is defined by its fundamental hold types. Jugs are large, positive holds that are easy to grip. Crimps are small edges that demand finger strength. Slopers are rounded holds that rely on friction and good body position. Other common types include Pockets (holes for one or more fingers), Pinches (squeezable holds), Underclings, and Side Pulls. You can expand your knowledge by exploring the different types of climbing holds and techniques in more detail.

Different holds require specific techniques. Success on slopers often depends on keeping a low center of gravity to maximize surface friction. For crimps, there is a difference between the safer open-hand grip and the high-stress full-crimp grip, which should be used with caution. After you’ve decided on the holds, choosing the right climbing holds is the next logical step. A key ergonomic principle is to pull perpendicular to a hold’s surface to maximize efficiency and conserve energy.

Evolution of Hold Materials

The most common material for modern climbing holds is Polyurethane (PU). It is lightweight, durable, and well-suited for creating large, complex shapes like granite or other rock features. In contrast, Polyester (PE) is a cheaper but heavier and more brittle material. It offers a gritty, rock-textured wall feel but is prone to chipping over time.

A significant trend in the industry is the move towards sustainable climbing hold materials. This is a response to the environmental impact of traditional thermosetting plastics. Innovations include recyclable Thermoplastics (TP) and composites like hemp-infused resins or PU made with natural oil polyols instead of petroleum products. Understanding materials is key, as is knowing how to approach enhancing grip on holds.

The EN 12572-3 standard for climbing holds is a critical benchmark for safety and quality. This European standard mandates tests for mechanical strength, ergonomic safety (no sharp edges or entrapment risks), and material safety (no hazardous substances). It provides a crucial baseline for all materials, including new and recycled options.

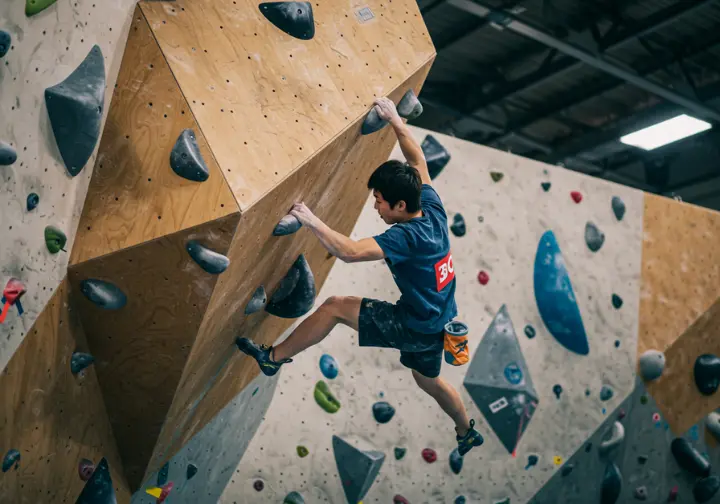

Volumes: Adding Three-Dimensionality

Volumes are large, attachable structures that are bolted to the main wall panels to significantly alter the climbing terrain. Their primary purpose is to add three-dimensionality, locally change the wall angle, or create artificial features like arêtes, bulges, or small roofs. Volumes are a key tool that allows route setters to enhance route variety and introduce new types of movement on a wide wall.

Common materials for volumes must be lightweight yet durable. These include plywood, often used for DIY volumes, and fiberglass, which is used commercially for complex, organic shapes. Emerging thermoplastics are also prized for being ultra-lightweight and recyclable, making them easier for setters to handle. Understanding how route setters design climbs provides context for how these elements are used in modern walls.

Volumes attach to the wall using the same T-nut and bolt system as regular holds. They are designed with bolt holes that align with standard T-nut grid patterns. Larger volumes may include extra screw points for added stability and to prevent rotation under a climber’s weight, creating a seamless climbing structure.

The Safety Net: Protection and Landing Systems

The paramount safety systems that protect climbers from falls are a non-negotiable part of any climbing wall design. This includes the engineered matting systems used for bouldering and the robust anchor and belay systems required for top-rope and lead climbing. These systems, from the floor to the ceiling, are governed by strict wall safety rules that dictate their design and use.

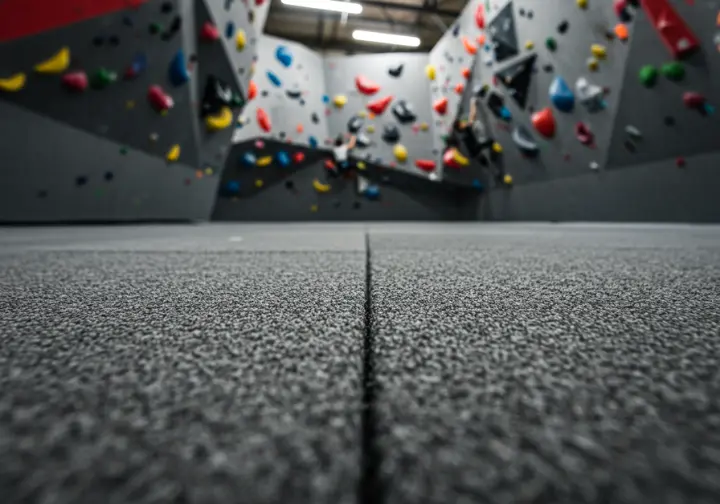

Bouldering Matting and Flooring

Bouldering matting is an engineered fall attenuation system, not just simple padding. The core is typically made of several layers of foam, often combining different densities of Polyurethane (PU) Foam and Memory Foam to provide progressive cushioning and minimize rebound upon impact. This system of bouldering pads is a critical component of overall bouldering wall safety requirements.

Durable outer covers protect the foam on the floors. Common materials include waterproof Vinyl (PVC) and highly abrasion-resistant Nylon Cordura. Many gyms opt for a carpet composite top layer, which combines durability with a better feel and aesthetic. Of course, gym flooring is just one part of the equation, alongside other safety practices like using crash pads and spotting for safety.

Critical safety metrics like thickness (often 40cm for climbing competitions) and impact attenuation ratings like Head Injury Criterion (HIC) and GMAX are specified in industry guidelines from the Wall Association. Standards such as EN 12572-2 also dictate the required coverage area of the landing zone to ensure adequate protection.

Top-Rope and Lead Climbing Anchors

Top-rope anchors are the fixed points at the top of a wall where the belay ropes are suspended for top rope climbing. They are typically made of stainless steel for durability and are designed to hold the ropes away from the wall’s surface to prevent wear on both the rope and the wall’s surface. Redundancy is a key principle, and all systems must comply with standards like EN 12572-1. Learning the fundamentals of top rope climbing is a great first step for many new passionate climbers.

The protection system for lead climbing involves a series of fixed protection points that climbers clip into as they ascend. These hangers are engineered to withstand high load cycles and are attached to the wall’s main structure with multiple nuts for redundancy. A minimum of four protection points per line is generally recommended for these important wall sections.

Auto-belay systems are increasingly common in gyms and require their own robust anchoring structure. Specialized anchor plates position the device correctly and often feature dual redundancy. These mechanical devices require diligent inspection and periodic recertification by the manufacturer to ensure they meet stringent safety standards.

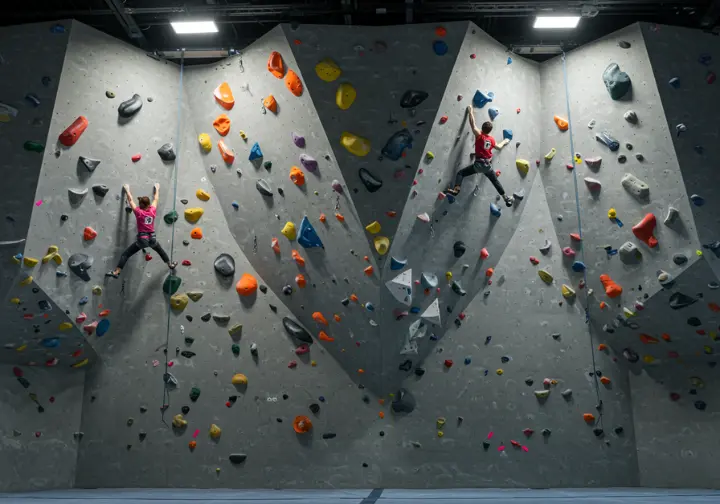

Tailored Designs: How Wall Types Differ

Climbing walls are not one-size-fits-all structures. They are specifically tailored to different climbing disciplines, each with unique design characteristics, components, and safety systems. From short, powerful bouldering walls to tall, endurance-focused lead walls and highly standardized speed walls, the wall configuration follows its function.

Bouldering vs. Roped Climbing Walls

Bouldering walls are shorter, typically under 4.5m, which allows for climbing without ropes, though climbers still use climbing shoes. Safety is provided by thick, engineered matting. They often feature complex terrain with varied overhangs, roofs, and slabs designed to test power and technique on short “boulder problems.” A high density of T-nuts is common to allow for maximum routesetting flexibility, and understanding what defines a boulder problem provides context for this type of climbing.

Top-rope walls are a common entry point for new climbers. On these walls, a rope runs through a secure anchor at the top. These walls are often less overhanging than lead walls and can host many climbers in a dense area. The most important component is the robust top anchor system.

Lead climbing walls are the tallest sections in a gym (often 12m+), designed for a more advanced form of climbing. They are characterized by significant overhangs and a series of fixed protection bolts that climbers clip into as they ascend. The critical components are the sequence of bolts and the final top anchors.

Specialized and Competition Walls

An IFSC Speed Climbing Wall is a highly specific structure with standardized dimensions: 15 meters high with a 5-degree overhang. The panel layout and surface are also standardized. Most importantly, it uses a universally identical set of 20 handholds and 11 footholds in a fixed pattern, along with an electronic timing system. This ensures fair and comparable competition worldwide. You can learn more by checking the official speed climbing wall specifications.

Traverse walls are short, bouldering-style walls designed primarily for horizontal movement rather than vertical ascent. Because of their low height, they are excellent for children, endurance training, or warm-ups, and are always positioned over thick safety mats. Some innovative designs even make a section of your climbing wall transparent with a piece of plexiglass for viewing.

Instructional or Adventure Walls are multi-purpose structures designed for teaching skills like belaying and abseiling. They often include a variety of features like slabs, corners, and belay ledges. They may also incorporate facilities for climbers with disabilities or elements for instructor training courses. Understanding the rules and formats of IFSC competition can give insight into how specialized walls are used.

Conclusion: The Wall as an Engineered System

A climbing wall is a sophisticated system where the integrity of each part is critical for climber safety and the quality of the climbing experience. We’ve journeyed from the foundational frame and tactile panels to the crucial hardware, diverse holds, and non-negotiable safety systems. With this deeper understanding, climbers can better appreciate the environment they climb in, assess potential risks, and engage more thoughtfully with route setting and wall features. Continuing to develop knowledge about equipment and the environment is a core part of becoming a more dedicated and skilled climber.
