Anchor Chain: PAS to Fixed – The Ultimate Guide

Personal anchoring is an indispensable part of rock climbing, and Personal Anchor Systems (PAS) have evolved to meet this need. This guide will explore their safe and effective use with fixed anchors, touching upon the convenience-versus-safety paradigm. We will delve into understanding core components, comparing PAS types, material properties, fixed anchor details, safety standards, connection techniques, critical safety principles like avoiding shock loading, and gear maintenance, ensuring your anchoring setup is sound. Ready to secure your understanding?

Understanding Core Components: PAS and Fixed Anchors

This section defines Personal Anchor Systems (PAS) and fixed anchors. We’ll clarify their primary purposes and key differentiators from similar-looking equipment. Understanding the common components climbers interact with is crucial for building foundational knowledge for safe usage of any anchor chain system.

Defining Personal Anchor Systems (PAS)

A Personal Anchor System (PAS) is a purpose-built piece of climbing equipment designed to secure a climber directly to an anchor point or belay station. Its primary applications include securing the climber while cleaning gear from a sport route or establishing a connection at a belay stance during multi-pitch climbing. Climbers also use a PAS for setting up and transitioning to a rappel and for temporary connections during aid climbing maneuvers. You can explore more about Personal Anchor System applications to see their versatility.

It is critical to understand that a PAS is “personal.” It is designed to hold static loads, such as a climber’s body weight, and is generally not intended or certified to arrest dynamic falls like a climbing rop. This distinction is vital because misapplication can lead to system failure. While the PAS has emerged as specialized equipment, any anchoring gear involves inherent risks. A thorough understanding of its design, limitations, and correct application is paramount for safety, as convenience can sometimes lead to overlooking these principles when anchored. The PAS attaches to your harness, so securely connecting to your climbing harness is a relevant aspect of its proper use.

PAS vs. Traditional Daisy Chains: A Critical Distinction

A critical distinction must be made between modern Personal Anchor Systems and traditional daisy chains, as confusing the two can have severe safety consequences. While they may appear superficially similar with their multi-loop construction, their design, strength, and intended uses are fundamentally different. Understanding how they differ is key, and resources are available for differentiating PAS from daisy chains.

Traditional daisy chains are primarily designed as an aid climbing tool for body-weight adjustments and positioning; the individual pockets sewn into them are not rated to full strength, typically holding only a few kilonewtons (e.g., 1-5kN), and will fail under significant loads. There are significant dangers of misusing daisy chains that every climber should be aware of. In contrast, modern chain-style PAS, like the Metolius PAS 22 or a Black Diamond link chain, are constructed so each individual link is rated to the full strength of the system (typically 22kN). Thus, a PAS may be used in aid climbing where a daisy chain is appropriate, but a traditional daisy chain, with its traditional daisy chain design limitations, should never be used as a Personal Anchor System for critical life support connections.

Understanding Fixed Anchors and Their Components

A fixed anchor is any piece of climbing equipment that is intentionally left in place on the rock to facilitate a safe ascent or rappel. Common examples include bolts (equipped with hangers), pitons, and permanently installed slings or chains that form part of the anchors. Components relevant to PAS connection include bolts (expansion or glue-in), hangers for clipping, metal chains for linking bolts, and rappel rings or quicklinks (a type of shackl) as durable wear points. Many resources detail the types of climbing anchor components. The vast majority of modern fixed anchor components are made from stainless steel for strength and corrosion resistance.

Climbers often assume fixed hardware is unquestionably strong, but this perception can be misleading as fixed anchors are subject to degradation from wear, corrosion, improper installation, and rock quality issues. This includes any used anchors found at crags. Entities like the U.S. National Park Service explicitly state they do not inspect, maintain, or repair fixed anchors, as detailed in the NPS policy on fixed anchors. This places the responsibility for evaluation squarely on the climber. This relates to understanding fixed hardware ethics and inspection, an important aspect of climbing.

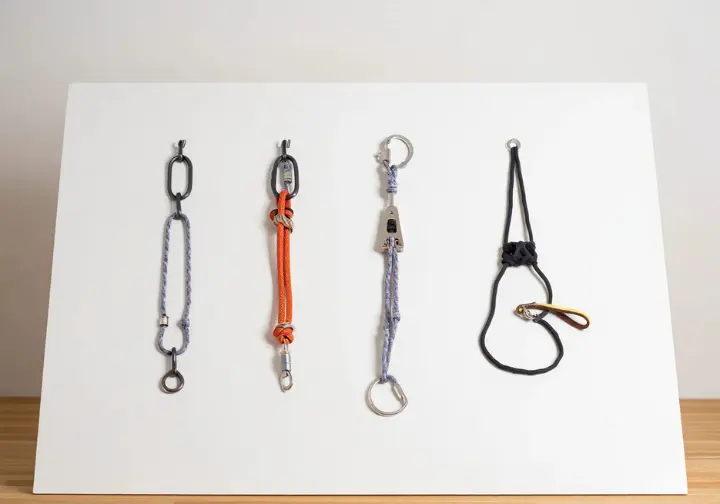

Comparing PAS Types and Alternatives

This section provides a detailed comparison of various Personal Anchor Systems and common alternatives. We will focus on their design, materials, certified strengths, advantages, limitations, and typical use cases. This information aims to help climbers make informed choices based on their needs for reliable anchoring.

Chain-Style PAS (Dyneema® & Nylon)

Chain-style PAS, such as the Metolius PAS 22 or Black Diamond Link Anchor System, consist of individually sewn, full-strength loops, creating a chain-like structure, or link chain, that allows for adjustable attachment lengths by clipping a carabiner into different loops. These are typically made from high-strength webbing materials like Dyneema® (UHMWPE) or nylon.

A key feature is that each link is rated to the system’s full static strength, usually 22kN, and often certified under UIAA 104 or EN 566 (standards for slings). Dyneema® versions are lightweight and strong statically but have very little stretch. This low stretch transmits extremely high impact forces if shock-loaded—a critical safety concern often misunderstood. Nylon chain-style PAS offer more inherent stretch and better dynamic energy absorption compared to Dyneema® due to nylon’s material properties. This makes them a comparatively safer choice if minor dynamic loading is a possibility, though they are still primarily static devices and bulkier than Dyneema®. There’s good information available for comparing nylon and Dyneema PAS. Selecting essential climbing gear for anchoring involves understanding these material differences for your anchor chain.

Dedicated Adjustable Rope Lanyards

Systems like the Petzl Connect Adjust or Beal Dynaclip feature dynamic climbing rop connected to a mechanical adjuster or friction plate. This design allows continuous, often one-handed length adjustment, offering precise positioning when anchored. You can see the Petzl Connect Adjust features for an example. Their primary advantage lies in their dynamic properties; the use of dynamic rop provides significantly better shock absorption in the event of a short fall compared to static PAS, enhancing safety.

These PAS are often certified to UIAA 109 / EN 17520, a standard including dynamic testing that limits peak impact force. For more on this, you can review the UIAA 109 lanyard standard details. While offering superior dynamic safety and precise adjustability, these lanyards are generally more expensive and can be bulkier than chain-style PAS or simple slings. Some adjustment mechanisms can also be finicky to operate or difficult to release when fully weighted, and specific models may have limitations like sensitivity to rop diameter (e.g., Kong Slyde). These are often used at belay stations, representing a sophisticated piece for understanding advanced belay station equipment.

Sewn Slings (Nylon, Dyneema®) as PAS Alternatives

A simple loop of sewn webbing, typically girth-hitched to the harness, can create a fixed-length tether for use as a PAS alternative. These are made from nylon, Dyneema® (Spectra/Dynex/UHMWPE), or blends, and brand new slings are typically rated to 22kN and certified to UIAA 104 / EN 566. There’s extensive information on Dyneema vs Nylon sling properties.

Advantages include being lightweight and compact (especially Dyneema® versions), versatile for other anchoring purposes, inexpensive, and commonly carried by most climbers already. However, their static nature is a significant drawback; Dyneema® slings offer almost no stretch, and even nylon slings offer limited stretch in such short lengths, meaning very high impact forces if shock-loaded. The lack of adjustability is another key limitation, as a fixed length can be awkward, leading to too much slack (dangerous) or an uncomfortable position at the anchor. Using a standard sling as a PAS demands heightened awareness of positioning to eliminate slack and a clear understanding of the severe consequences of shock-loading it. For more guidance, refer to advice on choosing climbing slings. Slings are components of quickdraws, highlighting their versatility of sewn slings in climbing systems.

Purcell Prusiks as PAS Alternatives

A Purcell Prusik is an adjustable loop or tether created by the climber by tying a Prusik hitch with accessory cord (typically 6mm or 7mm nylon, or sometimes stronger cords like Sterling PowerCord with a Technora core) around two strands of the same cord, forming a self-adjusting system. You can learn about making a Purcell Prusik tether from various resources. Its main advantage over purely static systems is that the slippage of the Prusik knot under very high loads is designed to provide a degree of dynamic energy absorption, reducing peak forces in a shock-load event (one test indicated a force reduction of approximately 40% compared to a simple nylon loop in a Factor 1 fall onto an anchor).

Limitations include being bulkier than a simple sling, adjustment potentially requiring two hands and being less convenient than commercial adjusters, having limited shortening capability (typically to about half its extended length), and the crucial fact that the slippage mechanism causes friction, heat, and abrasion on the cord (particularly the sheath around the Prusik knot), necessitating diligent inspection and eventual replacement. Correctly tying and using a Purcell Prusik requires specific knot knowledge and practice. There are many online forums with discussion on Purcell Prusik for PAS for further reading.

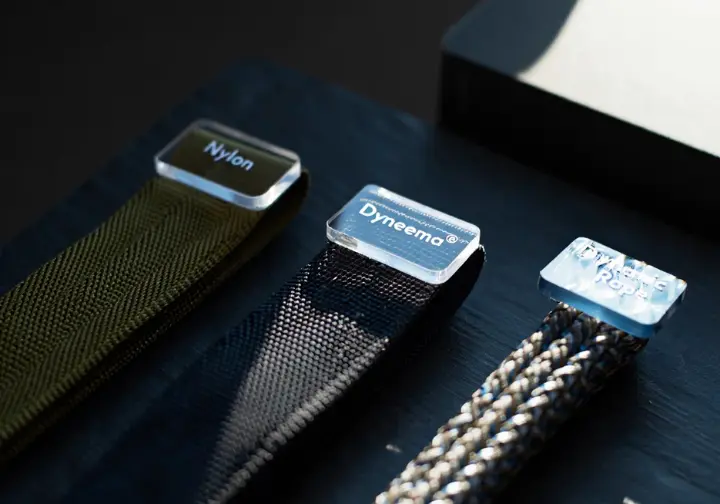

Material Properties and Their Climbing Implications

This section delves into the properties of common materials used in Personal Anchor Systems—Nylon, Dyneema® (UHMWPE), Polyester, and Dynamic Rop—and explains how these characteristics directly impact PAS performance, safety, and longevity in climbing scenarios. The choice of material for an anchor chain or lanyard is significant.

Nylon (Polyamide) in PAS

Nylon, a polyamide, is known for its good elasticity, capable of stretching up to 30% under load. This allows it to absorb significant dynamic energy; this makes nylon-based PAS better performing in shock-load events compared to more static materials. It has a moderate strength-to-weight ratio, good abrasion resistance, and knots generally hold well and are easier to untie after loading.

A notable characteristic is its tendency to absorb water, which can lead to a reduction in strength (up to 10-20%) and cause it to freeze and stiffen in cold, wet conditions. Its melting point is relatively high, around 245°C, and it offers reasonable UV resistance. Climbers should be aware of the effects of harmful substances on nylon slings. Nylon-based PAS, such as the Sterling Chain Reactor or adjustable lanyards like the Petzl Connect Adjust (which uses a dynamic nylon rop), provide better dynamic performance and energy absorption, making them a preferable choice in situations where some dynamic loading is possible or where mitigating force on the anchor is a priority. This aligns with understanding properties of nylon climbing ropes, as climbing ropes are predominantly nylon.

Dyneema® (UHMWPE) in PAS

Dyneema®, an Ultra-High-Molecular-Weight Polyethylene (UHMWPE) also known by brand names like Dynex® or Spectra®, boasts an exceptionally high strength-to-weight ratio, making it significantly lighter and less bulky than nylon for equivalent static strength. Its most critical property concerning PAS usage is its minimal stretch (typically 3-5%), rendering it essentially static; this means it transmits very high forces if shock-loaded, making it crucial to avoid any slack and prevent falls onto a Dyneema® PAS or anchor chain.

It absorbs very little water, floats, and exhibits excellent UV and chemical resistance and high abrasion resistance. A significant drawback is its low melting point, around 145°C, making it more susceptible to damage from friction-generated heat. It is also very slippery; knots tied in Dyneema® can slip at lower loads, significantly reduce the material’s effective strength, and can be very difficult to untie after being weighted. Considerations for Dyneema equipment retirement considerations are important, even if focused on sailing, as degradation factors apply. The use of Dyneema in lightweight quickdraw dogbones is a common application due to its properties, often seen in a compact link construction.

Polyester in PAS

Polyester (e.g., Terylene, Dacron) offers low stretch, more than Dyneema® but significantly less than nylon (e.g., around 3-10%). Its strength is comparable to, or slightly less than, nylon, but it notably retains its strength very well when wet due to its hydrophobic nature (very low water absorption). It has good UV and abrasion resistance, and tends to be stiffer in handling compared to nylon, which can make it feel less supple. Its melting point is high, around 260°C.

Polyester is less commonly used as the sole material for a PAS but is sometimes found in blends or specific components, like the Grivel Daisy Chain Evo which incorporates polyester with Dyneema®. Its key advantages are excellent wet strength retention and UV resistance, offering a balance of properties that can be beneficial in certain environments or for added durability of an anchor tether. For more insight, one can read about comparing polyester to nylon and Dyneema properties in online discussions.

Dynamic Rope in Adjustable Lanyards

Dynamic climbing ropes, used in adjustable lanyards like the Petzl Connect Adjust or Beal Dynaloop, are specifically engineered for energy absorption during falls. They achieve this through significant elongation under load, typically featuring a nylon kernmantle (core-sheath) construction designed to meet safety standards for dynamic performance. Learning how dynamic ropes absorb fall energy is fundamental for climbers using such a rop as part of their anchoring system.

When used in these PAS, dynamic rop provides the best energy absorption capabilities among PAS materials if a dynamic load, such as a short fall onto the anchor, occurs. This is why such lanyards can often meet the stringent dynamic testing requirements of UIAA 109 / EN 17520, which limit impact forces. While offering superior energy absorption for short falls compared to static tethers, it’s important to remember these adjustable lanyards are still primarily for positioning and are not intended to arrest significant lead falls like a primary dynamic climbing rop, which has much more length to dissipate energy. Understanding the characteristics of dynamic climbing ropes for safety is key.

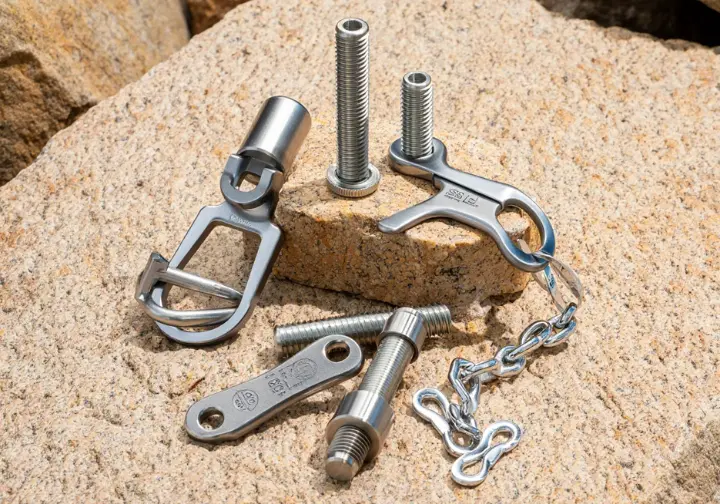

Fixed Anchor Deep Dive: Components and Materials

This section examines the critical components of fixed anchors that a PAS connects to, including bolts, hangers, chains, and rappel hardware. It will also cover material considerations, especially in corrosive environments, emphasizing the importance of understanding these elements for overall system safety when relying on a steel anchor chain or other fixed components.

Bolts: The Anchor Foundation

Bolts are the most common type of fixed protection, drilled into the rock and secured either by mechanical expansion (e.g., wedge bolts, sleeve bolts) which grip the inside of the hole, or by chemical adhesion (glue-in bolts) using strong epoxy or resin. Glue-in bolts are often preferred for long-term durability, especially in softer rock or corrosive environments due to the complete seal they provide. These modern anchors are a mainstay of many climbing areas. Understanding climbing bolt installation standards is crucial for appreciating their reliability.

Stainless steel is the predominant material for climbing bolts due to its strength and corrosion resistance. It is crucial that the bolt and hanger materials are compatible (ideally the same type of stainless steel) to prevent galvanic corrosion, which occurs when dissimilar metals contact in the presence of an electrolyte (like moisture), accelerating corrosion of the less noble metal. A galvanized steel anchor component might be seen, but stainless is more common for longevity. Bolts used for climbing are typically at least 3/8 inch (or 10mm) in diameter and, when properly placed in good rock, offer very high strength, often exceeding 25kN. However, their reliability is highly dependent on correct installation, the quality of the rock, and ongoing environmental conditions. This ties into the responsible use and assessment of fixed protection.

Hangers, Chains, and Rappel Hardware

Hangers (also called plates) are metal plates attached to the bolt head, providing a secure and accessible loop for clipping carabiners; they are usually stainless steel, matched to the bolt. Chains are frequently used to link two or more bolts for redundancy and load distribution, or to extend the anchor’s master point to a more convenient rappel or lowering point. These often take the form of an open link chain or a more specialized link design. Rappel rings and quicklinks (maillons, a type of anchor shackles) are components specifically designed to have the rop run through them for rappelling or lowering, acting as durable, wear-resistant points.

Rappel rings are usually solid, welded steel rings (stainless steel is common) offering a smooth surface. Quicklinks are oval or D-shaped metal links with a threaded sleeve for closure; for climbing anchors, they must be rated for climbing loads and made of steel. Such type shackles are common. It is critical that quicklinks are properly closed (fully screwed shut, often wrench-tightened for permanent installations) to achieve their full strength. These components are intended to be the primary points of wear in an anchor system and are generally more easily replaceable than bolts or hangers. Guidance on inspecting fixed climbing hardware components is readily available. Understanding how carabiners interface with anchor hardware is also beneficial.

Corrosion and Material Issues in Fixed Anchors

Standard stainless steel grades like 304 and 316L offer good corrosion resistance in many environments, but they can still corrode, especially in coastal (salt-laden) areas, regions with acidic rock or water, or when dissimilar metals are in contact. This is a concern for any steel anchor chain or bolt. In highly corrosive environments, specialized grades of stainless steel, such as AISI 904L or various duplex stainless steels (often termed High Corrosion Resistance or HCR steels), are recommended for their superior resistance to pitting corrosion and stress corrosion cracking. Titanium bolts offer excellent corrosion resistance, particularly in marine environments, though titanium hangers can wear more quickly from rop abrasion, and titanium is significantly more expensive than steel.

A significant, often invisible threat is Stress Corrosion Cracking (SCC), which can occur in certain grades of stainless steel (particularly some common ones if improperly selected for the environment) leading to sudden, brittle fracture of the bolt with little to no visible external warning signs on the anchor. This type of failure is particularly dangerous because the bolt can appear perfectly sound, underscoring the importance of local knowledge and support for rebolting initiatives using appropriate materials. Resources discussing understanding stress corrosion cracking in bolts can provide deeper insight into this complex issue.

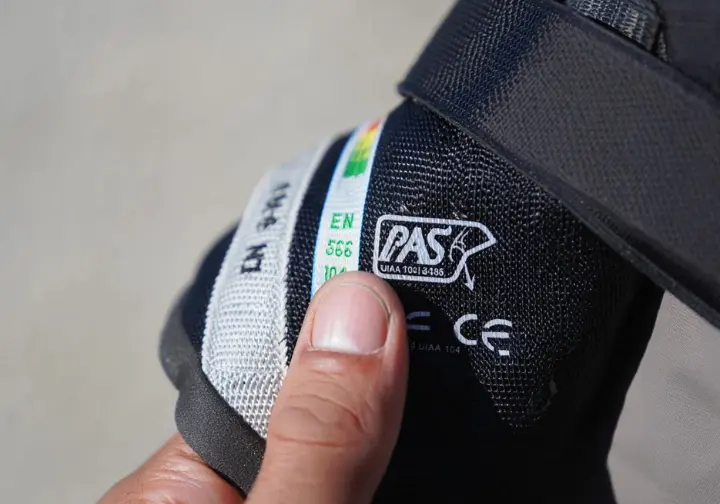

Decoding Safety Standards and Certifications

This section explains key safety standards (UIAA, CE) and specific certifications (UIAA 104/EN 566 for slings, UIAA 109/EN 17520 for belay lanyards) relevant to PAS and components of anchors. Understanding these helps climbers make informed choices about equipment performance and limitations.

UIAA and CE Markings Explained

The UIAA (International Climbing and Mountaineering Federation) is a global organization that develops and publishes safety standards for a wide range of climbing and mountaineering equipment; the UIAA Safety Label signifies that a product has been tested by an accredited laboratory and meets these internationally recognized standards for items like an anchor chain. The CE (Conformité Européenne) marking indicates that a product conforms to the health, safety, and environmental protection standards required for sale within the European Economic Area (EEA); CE standards for climbing equipment are often harmonized with or based on UIAA standards. You can find more UIAA Safety Label information on their official website.

Looking for UIAA and/or CE labels is a crucial first step, as it provides an assurance that the product has undergone baseline testing for its intended use. However, climbers should be aware of the potential for counterfeit markings and always buy safety-critical equipment, including any shackles or chains, from established retailers. The UIAA maintains a database for verifying UIAA certified equipment. Certifications are fundamental for the importance of certified climbing equipment for safety.

UIAA 104 / EN 566: Slings (Static PAS)

This standard applies to sewn slings made from webbing and, by extension, is often the standard to which static chain-style PAS constructed from individually sewn webbing loops (e.g., from Dyneema® or nylon) are certified. This is relevant for many forms of personal anchor chain. The primary requirement under UIAA 104 is minimum static strength, which is typically 22kN for slings intended for climbing. This confirms the product can hold a significant static load without breaking. The UIAA sling standard recommendations offer further details.

Crucially, UIAA 104 / EN 566 does not include requirements or tests for dynamic energy absorption in the way that standards for dynamic ropes or belay lanyards do. Therefore, a PAS certified only to UIAA 104 (or EN 566), if made from a static material like Dyneema®, is guaranteed strong under static loads but will offer negligible energy absorption and transmit very high forces in a dynamic event, impacting both climber and anchor.

UIAA 109 / EN 17520: Belay Lanyards (Dynamic PAS)

This standard is specifically for lanyards intended to be the primary connection between a climber and a belay stance, with the ability to withstand a dynamic impact; this includes adjustable lanyards made from dynamic rop, such as the Petzl Connect Adjust. An UIAA mountaineering lanyard standards overview can be found on their site, which lists all UIAA safety standards. These are specialized anchoring tethers.

Products certified to UIAA 109 must pass specific dynamic drop tests (e.g., arresting an 80kg mass dropped from a specified height like Fall Factor 1.6 or 2) and, critically, must limit the peak force transmitted to the anchor to a maximum value (e.g., 10kN or less). To meet these dynamic performance criteria, lanyards certified to UIAA 109 must be made from materials capable of absorbing energy, which typically means dynamic climbing rop. A PAS certified to UIAA 109 offers a tested and verified level of dynamic safety, making it a significantly better choice if there is any risk of falling onto the lanyard. This knowledge is vital for understanding safety standards for belay equipment.

The “Certification Gap” and Nuances

A “certification gap” can exist for some hybrid PAS designs, for instance, chain-style PAS made from nylon (e.g., Sterling Chain Reactor, Metolius Dynamic PAS). Nylon has inherently more dynamic (energy-absorbing) properties than Dyneema® due to its natural stretch. This applies to some types of anchor chain.

These nylon chain PAS might therefore offer better energy absorption in a shock-load scenario than their Dyneema® counterparts. However, due to their linked-loop construction (link design) and primary reliance on static strength for each link, they are often certified under UIAA 104 (slings) and may not meet the full dynamic rop construction and performance criteria typically associated with UIAA 109. This creates a nuanced category: such a PAS is likely more dynamic than a Dyneema® chain PAS (UIAA 104) but perhaps not as dynamically capable as a dedicated dynamic rop lanyard certified to UIAA 109. When dynamic performance is a key concern, a UIAA 109-certified lanyard remains the gold standard for energy absorption in a PAS. For those interested in the broader context, understanding equipment certification limits and claims can be insightful. This also relates to choosing specialized climbing gear for specific needs.

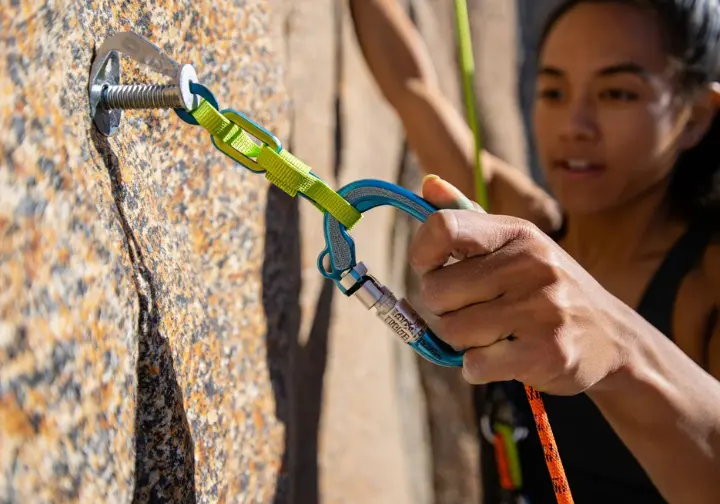

Secure PAS Connection: Techniques and Best Practices

This section details established methods for attaching a Personal Anchor System (PAS) to both the harness and various fixed anchor configurations. It emphasizes critical considerations for ensuring a secure and appropriate connection for maximum safety, whether using an anchor chain or other tethers.

Attaching PAS to Your Harness: The Debate

The most common method for attaching a PAS to a climbing harness is via a girth hitch, but there is debate and differing manufacturer recommendations regarding whether to attach it to the harness’s belay loop or to its two structural tie-in points. Manufacturers like Petzl often recommend attaching their dynamic rop lanyards (e.g., Connect Adjust) to the belay loop, citing reasons like maintaining comfort, allowing the harness to sit correctly, and ensuring the lanyard hangs appropriately for its intended function. You can review Petzl lanyard attachment recommendations for their reasoning on this hook-up.

Conversely, manufacturers like Black Diamond, and many guiding organizations, recommend girth-hitching slings and chain-style PAS to both tie-in points. This approach often aims to keep the belay loop clear for carabiners and belay devices and to distribute wear across the more abrasion-resistant tie-in points, as concentrating wear on a single point of the belay loop (especially if the PAS prevents rotation) has been a concern. There are many expert views on harness attachment points for tethers available. Climbers should always consult and follow the manufacturer’s instructions provided with their specific PAS model. This discussion directly involves understanding climbing harness components and proper fit.

Locking Carabiners for Anchor Connection

A locking carabiner is an essential component when connecting a PAS to a fixed anchor, as it prevents accidental gate opening, which could lead to catastrophic disconnection. Common types include screw-gates (manual) and auto-lockers (e.g., twist-lock, triple-action). Screw-gates are reliable if consistently used correctly (always screwed shut) but can unscrew from vibration or rubbing if not properly tightened or oriented incorrectly. Auto-lockers offer enhanced security and speed but can sometimes be more complex to operate, especially with gloves, and may be more prone to freezing or jamming in adverse conditions. A secure click from the gate closure is reassuring.

HMS (pear shape) or Offset-D shapes are often suitable for PAS connections. More Petzl information on different carabiner shapes can clarify these options. A keylock nose design, featuring a smooth interface between the carabiner nose and the gate that eliminates the traditional notch, is highly desirable as it significantly reduces the likelihood of the carabiner snagging on PAS loops, bolt hangers, or other gear, making clipping and unclipping much smoother and safer. These serve as critical hooks in the safety system. This is directly relevant to selecting appropriate lockable carabiners for your PAS.

Connecting to Single and Two-Bolt Anchors

When connecting to a single bolt, the PAS is clipped directly to the bolt hanger (or an attached ring or chain link) using a locking carabiner; if using a static PAS, it is critical to select a loop length that ensures the PAS is taut with no slack to prevent shock loading the anchor. This is a single-point connection and should be backed up if spending significant time there or if the bolt’s condition is questionable. For more on this, refer to techniques for setting and cleaning sport anchors.

For two-bolt anchors without connecting chains, options include using two PAS arms/loops (one to each bolt with separate locking carabiners), or clipping the PAS to one bolt and using a separate sling or quickdraw to connect the harness to the second bolt for redundancy. Some chain-style PAS can be used for rudimentary equalization, but dedicated anchor materials are generally preferred for robust equalization. Familiarize yourself with principles of building redundant climbing anchors. With two-bolt anchors linked by chains/rings, one can clip individual hangers, a strong chain link, or the master rappel rings/link. Clipping the final master point is often simplest for rappel transitions, but consider wear on communal hardware versus convenience. This process is fundamental to setting up secure and redundant belay anchors.

Best Practices for Clipping Chain-Style PAS

When using a chain-style PAS with multiple full-strength loops, clip only one link of the PAS into a single locking carabiner that connects to the anchor, unless the manufacturer explicitly states otherwise for a specific technique. This ensures the load is applied to a single, full-strength element of the anchor chain. Resources like the Black Diamond QC Lab on daisy chain dangers and correct clipping are invaluable.

It is critical to reiterate that clipping a single carabiner through two adjacent pockets of a traditional daisy chain is extremely dangerous because it loads the very weak tack stitching between those pockets. While true chain-style PAS have strong individual loops, the principle of clean, unambiguous loading of a single designated link remains good practice. Ensure the carabiner is correctly seated within the chosen PAS loop, loading the webbing material as intended, not leveraging against stitching or sitting awkwardly. Use the designated end loop (often color-coded or differently constructed) for girth-hitching the PAS to the harness. You can deepen your knowledge by understanding PAS loop features for clipping. This H3 details correct usage, aligning with the proper use of specialized climbing tethers like chain PAS.

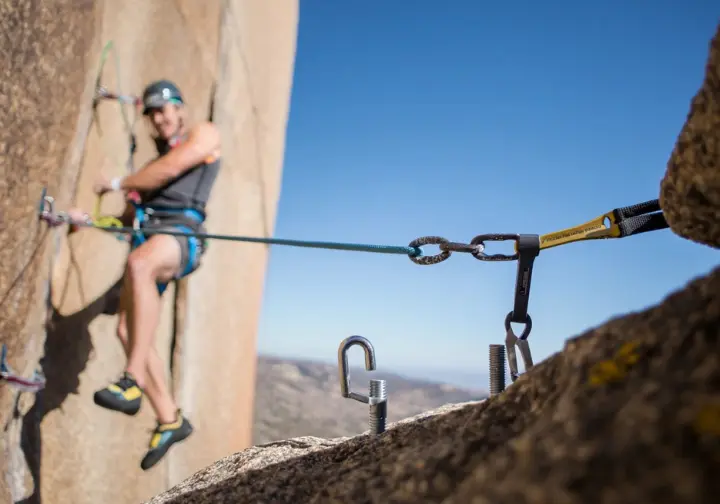

Critical Safety: Mastering Your PAS Usage

This section focuses on the most critical safety principles for PAS use, including understanding static vs. dynamic forces, fall factors, load limits, redundancy, and avoiding common carabiner misuse when connected to an anchor. Mastering these concepts is essential to prevent potentially catastrophic mistakes and achieve worry-free anchoring where possible.

Static vs. Dynamic: The Shock Loading Peril

Most Personal Anchor Systems, particularly chain-style PAS made from Dyneema® or nylon webbing, and simple sewn slings, are STATIC, meaning they have very little stretch or elongation when a load is applied to the anchor chain. Shock loading occurs when a sudden force is applied to such a static system, typically if a climber falls, even a short distance, directly onto their static PAS that has slack in it. A detailed Black Diamond explanation of PAS static nature and shock load is a good reference.

Because the PAS material does not stretch significantly, it cannot absorb the energy of the fall, resulting in extremely high impact forces being transmitted almost instantaneously to both the anchor system and the climber’s body. These forces can damage anchors or cause serious injury, even if the PAS itself (rated to 22kN statically) does not break. The Golden Rule: When using a static PAS, it must ALWAYS be kept taut (with no slack) between the climber and the anchor, and the climber must NEVER position themselves to fall onto it from above the bottom connection point. This principle is key to understanding static vs dynamic properties in climbing ropes and tethers.

Fall Factor (FF) and Its PAS Implications

The Fall Factor (FF = Fall Length / Length of Rope/Tether) quantifies fall severity relative to the anchor. A FF1 means falling a distance equal to the length of the tether; a FF2 means falling twice the length of the tether (e.g., climbing above the anchor point by the length of the PAS and then falling). A Petzl explanation of fall factor and impact force provides more detail.

FF is particularly critical with short, static PAS because there is very little material to elongate and absorb energy. Even a low Fall Factor fall (like FF0.5 or FF1) onto a static PAS can generate dangerously high impact forces. The consequences of a given Fall Factor are far more severe with static PAS compared to dynamic climbing ropes. A FF1 fall onto a dynamic rop is generally manageable by the system; a FF1 fall onto a short Dyneema® PAS could be catastrophic for the anchor, equipment, or climber due to the massive, unabsorbed impact force. It’s important to grasp understanding fall severity in climbing situations. Fall factor is a key concept in managing potential fall forces when belaying. The scope of potential falls must always be considered.

Load Limits, Strengths, and Human Tolerance

Most sewn slings and the individual loops of chain-style PAS are rated to a static strength of 22kN (approximately 4950 pounds-force) when new, as per UIAA 104. This signifies their capacity to hold a slow, steady load as an anchor component. This dynamic load capacity, the ability to absorb energy during a fall and limit peak force, is very poor for static systems like most PAS.

The human body can only withstand certain impact forces before injury occurs, with 8-12kN often cited as a threshold for potential serious injury. Even if a 22kN static PAS doesn’t break during a shock load, the transmitted impact forces can easily exceed human tolerance or an anchor’s failure point. For deeper analysis, one could consult information on climbing anchor system strength and load analysis.

The Golden Rule of Redundancy

Redundancy is a fundamental principle of climbing safety, meaning that if any single component of a safety system or anchor fails, the entire system should not fail catastrophically. This is vital when connecting to anchors with a PAS, especially if anchor components are of unknown quality or if the climber is unroped. Discussions often reference discussion of AMGA anchor standards for redundancy.

Redundancy with a PAS can be achieved by using a PAS with two distinct arms clipped to separate, solid anchor points; using two separate PAS or one PAS and an additional sling/quickdraw to different points; or clipping the PAS to a master point that is already built with redundancy. While highly experienced climbers might deem a single-point PAS connection to a single, modern, well-placed bolt acceptable in specific, assessed situations, this requires expert judgment and is not a general recommendation. When in doubt, always opt for redundancy in your anchoring setup. Explore techniques for building redundant rappel anchors for more practical knowledge. This principle is one of the fundamental safety rules like anchor redundancy in climbing.

Avoiding Carabiner Misuse with Your PAS

Locking carabiners, essential hooks in the system, must always be loaded along their major axis (the spine), their strongest orientation, with the gate closed and the locking mechanism fully engaged. The gate should ideally face away from the direction of travel or any rock features that could rub it open. Tri-axial loading (loading in three or more directions) should be avoided if possible. While carabiners can retain significant strength in controlled lab settings under such loads, the real-world concern is the potential for the carabiner to shift into a weaker orientation (e.g., minor axis or gate-loaded) or for the gate to be inadvertently pushed open when connecting to an anchor. Reviewing Petzl examples of dangerous carabiner loading configurations can be very illustrative.

Cantilever loading (bending the carabiner over an edge like a sharp rock or hanger edge) is extremely dangerous and can dramatically reduce the carabiner’s strength, leading to failure at surprisingly low loads. Always ensure the carabiner body and gate are clear of any edges and can align with the applied load. Always double-check gate closure and lock engagement before weighting any part of your anchor chain or PAS. The Black Diamond QC Lab on off-axis and tri-axial carabiner loading provides further valuable insights. This is all part of correct carabiner usage and avoiding dangerous loading.

Inspection, Maintenance, and Retirement of PAS Gear

This section underscores the critical importance of regular inspection, appropriate maintenance, and timely retirement of Personal Anchor Systems and associated hardware like carabiners. It also covers assessing fixed anchors encountered on routes, as the PAS is only as strong as what it’s clipped to, including any visible chain links.

Inspecting Your Personal Anchor System (PAS)

Visually and tactilely check all PAS webbing (Nylon, Dyneema®, Polyester) for cuts, nicks, tears, frayed edges, excessive abrasion (fuzziness), pulled/broken stitches, burns (melted/glazed areas), and any discoloration or stiffness indicating chemical contamination or excessive UV exposure. Bending the webbing into an inverted “U” helps reveal small cuts in your anchor chain. Referencing Petzl detailed equipment inspection forms and procedures can guide this process.

Carefully examine all structural stitching, particularly at loop terminations and harness attachment points, for any stitches that are pulled, cut, frayed, abraded, or missing; safety stitching is often a contrasting color. For adjustable rop lanyards, inspect the rop component for sheath damage or core damage (soft/hard spots, lumps) and the adjuster device for cracks, wear, deformation, or corrosion, ensuring smooth and reliable locking. Perform a brief visual and tactile inspection before each use, and more detailed inspections periodically (e.g., annually by a competent person) or after any exceptional event like a significant load or suspected damage. Always follow manufacturer-specific inspection guidelines for your particular PAS model. General inspecting textile climbing equipment like harnesses and slings principles apply here too. Many of these are similar to principles for inspecting your climbing harness webbing and stitching.

Inspecting Your Locking Carabiners

Check the carabiner body and gate for any cracks (even hairline ones), sharp edges (which can damage textiles), corrosion, significant burrs, or excessive wear, particularly deep grooves in rope-bearing surfaces (some anodized color wear is normal, deep gouges are concerning). Also, check for any deformation. The gate should open smoothly and snap shut quickly and completely on its own every time; the spring should feel strong. If the gate is sticky, bent, askew, or does not close properly, the carabiner, a crucial hook in your anchor system, must be retired.

The locking mechanism (screw sleeve, auto-lock) must engage fully, smoothly, and securely. Check rivets holding the gate to the body are not bent, loose, or missing. Retire carabiners dropped a significant distance onto a hard surface, even with no visible damage, due to potential internal micro-cracks. Consult comprehensive guidelines for carabiner inspection and maintenance for thorough practices. Inspection is part of essential maintenance and inspection for lockable carabiners.

Inspecting Fixed Anchors You Encounter

Check bolts for looseness or spinning hangers. Look for corrosion or rust on bolt heads, nuts, and hangers, being especially wary of mixed metals (e.g., stainless hanger on plated carbon steel bolt) which accelerates corrosion. Check for bent bolts or hangers. Ensure the bolt is placed in solid rock, a reasonable distance from edges or cracks, and inspect the rock itself for fractures or “cratering” around the bolt. Hangers can become worn or grooved. This applies to all parts of the fixed anchor.

Inspect chains for wear (especially at connections or mooring chain links if it’s a heavy-duty setup), corrosion, and cracks. Rappel rings and quicklinks (shackles) are wear items; look for deep grooves from rop abrasion. Quicklinks must be fully closed (screw sleeve wrench-tight for permanent setups) and rated for climbing. Not every piece of general purpose chain is suitable for climbing; only use rated components. Treat any fixed webbing with extreme caution; it’s often best to replace or back up suspect fixed slings. Knowing how to report a bad or unsafe climbing bolt can also be helpful. This is part of the climber responsibility for assessing anchor safety and conditions.

Gear Cleaning, Storage, and Retirement Criteria

Clean PAS webbing/rop with cool to lukewarm water, using a mild soap specific for climbing textiles or a very gentle non-detergent soap if necessary; rinse thoroughly and air dry completely away from direct sunlight or heat sources. Store in a cool, dark, dry, well-ventilated place, away from direct sunlight, extreme temperatures, and corrosive chemicals. This applies to your anchor chain as well. Clean carabiners by blowing out dust, washing in warm soapy water with a soft brush for hinges/locks, rinsing thoroughly, and drying. Lubricate the gate hinge, spring, and locking mechanism with a dry, wax-based lubricant or specific carabiner lube, wiping off excess.

Retire PAS immediately after a severe fall/load, or for visible damage (cuts, tears, burns, excessive abrasion, damaged stitching, chemical contamination). Follow manufacturer lifespan guidelines (e.g., 10 years max from manufacture, less with use). Retire carabiners after severe loads/drops, or for cracks, deformation, deep wear, or gate/lock malfunction. Destroy retired safety gear to prevent accidental reuse. Refer to REI expert advice on when to retire climbing gear and guides on how to clean, maintain, and retire carabiners for more details. Understanding when to retire any component of an anchor system is vital.

Expert Recommendations and Practical Applications

This section consolidates guidance from experienced climbers, manufacturers (like Petzl and Black Diamond), and professional organizations (like AMGA). It also explores practical PAS applications in common climbing scenarios such as at belay stations, cleaning sport routes, and setting up rappels using an anchor chain or similar tethers.

Manufacturer Insights (Petzl, Black Diamond)

Petzl recommends attaching their Connect Adjust lanyard to the harness belay loop for comfort and optimal harness function with their product, and stresses these positioning lanyards must only be used when the potential fall factor is less than 1 (i.e., below the anchor point). They provide detailed inspection procedures. Black Diamond advises girth-hitching PAS (like the Link Anchor System) to both harness tie-in points to distribute wear and keep the belay loop clear, and their Black Diamond Link Anchor System product guidelines offer specific advice for their anchor chain. They also strongly warn against using traditional daisy chains for personal anchoring (aid climbing body-weight support only). They highlight that their Dynex-based PAS are tethers for static loads and should never be shock-loaded.

Both manufacturers emphasize understanding the static nature of most PAS and the critical dangers of shock-loading, reflecting a unified concern over misuse even if harness attachment philosophies differ based on PAS design. These insights are part of Petzl’s recommendations for integrating gear with their harnesses.

Guiding Principles (AMGA & Similar Bodies)

Core principles from guiding organizations emphasize redundancy in all climbing safety systems; when connecting to an anchor, especially for critical operations like rappel setup, strive for redundant connections to multiple independent and solid anchor points. Many sources discuss AMGA anchor standards and masterpoints. This includes the setup of any anchors.

They stress avoiding shock loading by keeping tethers taut and never falling onto static anchor components. Many guides advocate using the dynamic climbing rop itself for anchoring at belays when practical, reserving PAS for when the rop needs to be free. Thorough evaluation of all fixed anchor components before use is critical; do not blindly trust fixed hardware. Adherence to manufacturer guidelines and continuous learning through qualified instruction are also key tenets for safe climbing practices. These are often part of the safety standards and principles taught by climbing instructor certification bodies.

PAS at Multi-Pitch Belay Stations

A PAS allows the climber to securely attach to the anchor at a multi-pitch belay, freeing hands for rop management, belaying the second, organizing gear, and managing changeovers. This secure connection with an anchor chain or lanyard is vital for maintaining safety and efficiency on stances. Adjustable PAS, especially dynamic rop lanyards, are highly advantageous for optimal positioning and comfort at hanging belays or crowded stances, allowing for precise length tuning.

Redundancy is paramount; the PAS should connect to multiple independent anchor points or a redundant master point. Using the climbing rop with clove hitches is a common and effective alternative or supplement, especially if swinging leads, as it’s dynamic and inherently strong. You can learn more about using your climbing rope to build belay anchors. This is a core part of efficient and safe techniques for multi-pitch belaying and anchor management.

PAS for Cleaning Sport Routes & Rappel Setup

For cleaning sport route anchors, a PAS is commonly used to go “in direct” to the anchor bolts/chains, allowing the climber to untie from the rop, thread it through the rappel rings/links, and prepare for lowering or rappelling. A taut connection is vital if using a static PAS to prevent shock loading. Redundancy (e.g., clipping to both bolts if possible with the PAS, or backing up with a quickdraw on the rop to one bolt) is advisable while cleaning, especially while learning or if anchor components are suspect. Helpful resources like REI expert advice on how to clean sport anchors are available.

During rappel setup, a PAS is invaluable for securely attaching to the anchor while rigging the rappel device and ropes. It can be used to extend the rappel device away from the harness, providing space for a friction hitch backup (e.g., Prusik, Autoblock) on the brake strands below the device and keeping the device clear of bulky clothing. Some specialized release hooks might be encountered in complex rappel setups but are not standard PAS components. Always test the rappel system by weighting it while still secured by the PAS before committing to the rappel. For comprehensive guidance, consult the REI guide to essential rappelling techniques. This relates to setting up secure systems for lowering or rappelling.

Conclusion: Anchoring with Confidence and Competence

Successfully using a PAS hinges on understanding its specific type (anchor chain, adjustable dynamic rop lanyard), material properties (static vs. dynamic), and certifications (UIAA 104 vs. UIAA 109) to avoid misuse. It’s crucial to distinguish these from traditional aid-climbing daisy chains with weak pockets. Always keep static PAS taut to prevent shock loading, as they are not designed to arrest dynamic falls, which can generate extreme, dangerous forces on the anchor. Prioritize redundancy by connecting to multiple independent anchor points or a verified redundant master point. Master carabiner use (correct orientation, loading, locking) and diligently inspect your PAS, carabiners, and fixed anchors regularly, retiring equipment when its integrity is compromised. Fixed hardware is not infallible and requires careful assessment. A PAS is a tool; its safety depends on the climber’s knowledge, diligence in applying correct techniques, and adherence to manufacturer/expert guidance, fostering confident and competent anchoring.
